2-6600130-2
CONN HEADER MULTI-BEAM 30POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

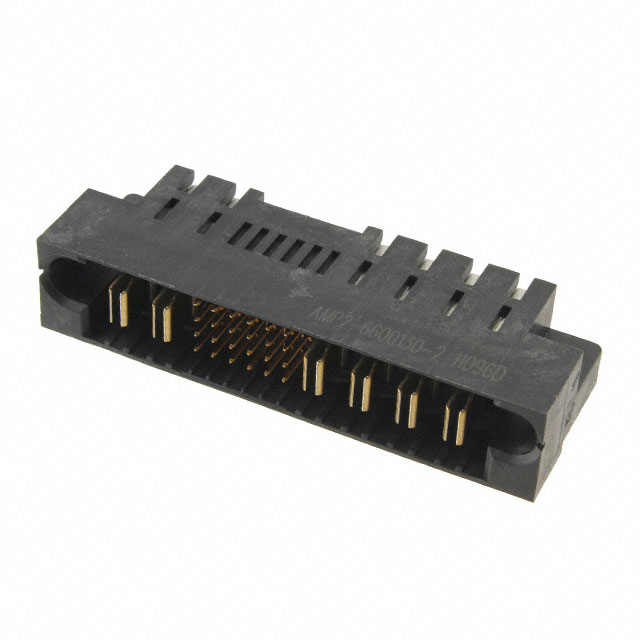

TE Connectivity AMP Connectors MULTI-BEAM XL series header, part number 2-6600130-2, is a 30-position, right-angle, through-hole connector featuring male pins and blades. This black header utilizes a 2.54mm pitch and offers a robust design for high-density interconnect applications. Key features include board lock for secure mounting and mating guides to ensure proper alignment. The contact configuration typically comprises 24 signal and 6 power contacts, with a gold contact finish of 30.0µin (0.76µm) for enhanced conductivity and durability. This component is commonly employed in telecommunications, data storage, and industrial automation systems.
Additional Information
Series: MULTI-BEAM XLRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 30 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 6 Power |
| Number of Columns | - |
