2-6450860-6
CONN RCPT MULTI-BEAM 52POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

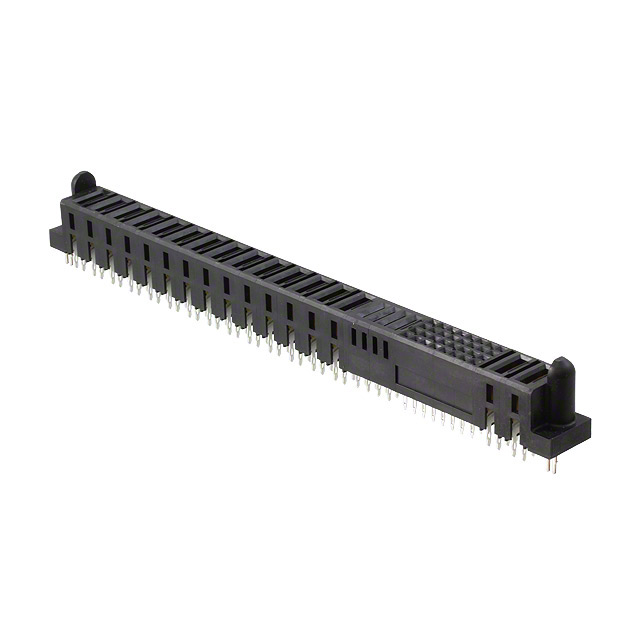

TE Connectivity AMP Connectors MULTI-BEAM XLE Series 2-6450860-6 is a 52-position receptacle connector designed for high-density, high-power applications. This through-hole mounted component features a black housing and a multi-beam connector style, accommodating both female sockets and blade sockets. The contact finish is gold with a thickness of 30.0µin (0.76µm) for optimal conductivity and durability. The contact layout typically comprises 32 signal and 20 power contacts, supporting demanding power delivery requirements within a 0.100" (2.54mm) pitch. Key features include board lock and guide pins for secure and accurate PCB assembly. Termination is achieved via a press-fit method. This connector is widely utilized in applications such as data centers, power supplies, and telecommunications equipment.
Additional Information
Series: MULTI-BEAM XLERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 52 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 32 Signal, 20 Power |
| Number of Columns | - |
