2-6450860-5
CONN RCPT MULTI-BEAM 44POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

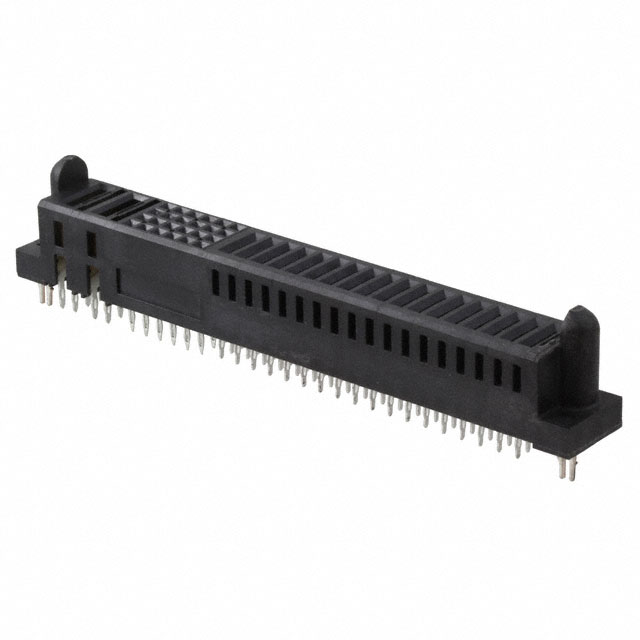

TE Connectivity AMP Connectors MULTI-BEAM XLE series receptacle, part number 2-6450860-5, offers a 44-position, 4-row configuration for high-density PCB interconnects. This black, through-hole mounted receptacle features female sockets and blade sockets with a 0.100" (2.54mm) pitch. The contact finish is gold with a thickness of 30.0µin (0.76µm), supporting 24 signal and 20 power contacts. Designed for demanding applications, it includes board lock and guide pin features for enhanced mechanical stability and alignment. Termination is achieved via a press-fit method. This component is utilized in industries requiring robust, high-performance power and signal delivery, such as telecommunications, data storage, and industrial automation. Packaging is supplied in trays.
Additional Information
Series: MULTI-BEAM XLERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 20 Power |
| Number of Columns | - |
