2-6450150-3
CONN RCPT MULTI-BEAM 20POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

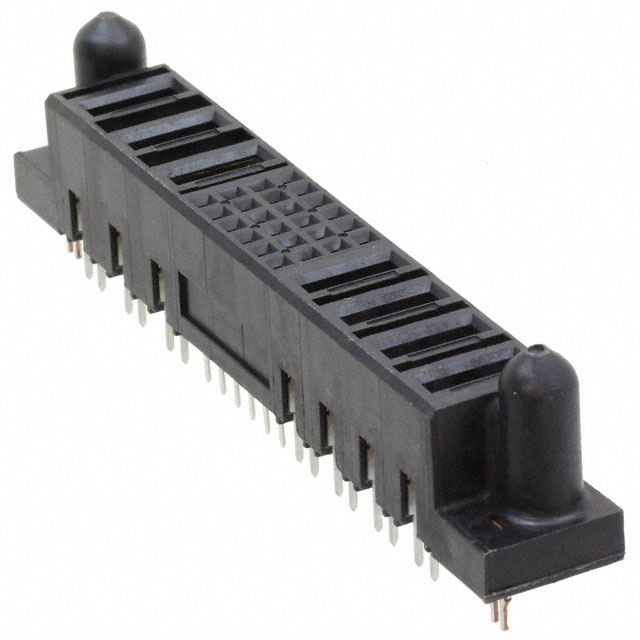

TE Connectivity AMP Connectors MULTI-BEAM XL series, part number 2-6450150-3, is a 20-position receptacle connector designed for PCB mounting. This through-hole component features a multi-beam connector style with a 0.100" (2.54mm) pitch. The receptacle houses female sockets and blade sockets, with a contact finish of gold, specified at 30.0µin (0.76µm). The contact layout typically comprises 16 signal contacts and 4 power contacts. Key features include board lock functionality and a guide pin for robust assembly. This component is suitable for high-density interconnect applications in industries such as telecommunications, data communications, and industrial automation. It is supplied in bulk packaging.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 16 Signal, 4 Power |
| Number of Columns | - |
