2-6450122-8
CONN HEADER MULTI-BEAM 11POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

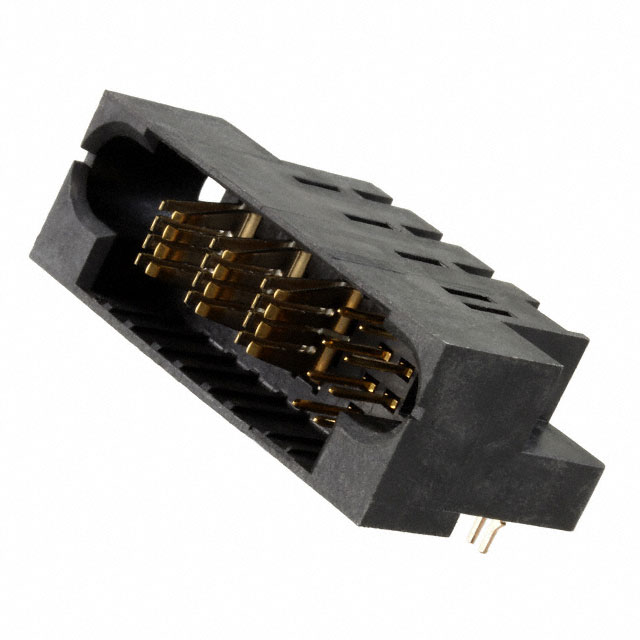

TE Connectivity AMP Connectors MULTI-BEAM XL series 2-6450122-8 is an 11-position right-angle header designed for PCB mounting via through-hole termination. This component features male pins and blades with a gold contact finish, 30µin thickness, and a 0.100" (2.54mm) pitch. The connector layout typically includes 8 signal and 3 power contacts. Key features include board lock and mating guide for secure assembly. The black housing is supplied in tray packaging. This robust connector is utilized in demanding applications within the telecommunications, data networking, and industrial automation sectors.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 11 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 8 Signal, 3 Power |
| Number of Columns | - |
