2-1926720-5
CONN HEADER 41POS EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

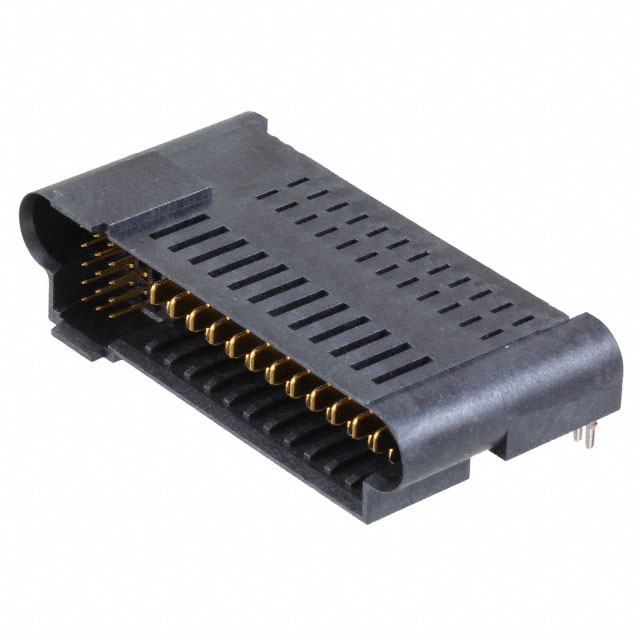

41 Connector Header, Male Pins and Blades Board Edge, Through Hole, Right Angle Black
Additional Information
Series: MINIPAK HDLRoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold or Gold-Palladium |
| Color | Black |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 41 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 25 Signal, 16 Power |
| Number of Columns | - |
Request a Quote
