1766503-1
ATCA ASSY, VERTICAL BACKPLANE, PManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

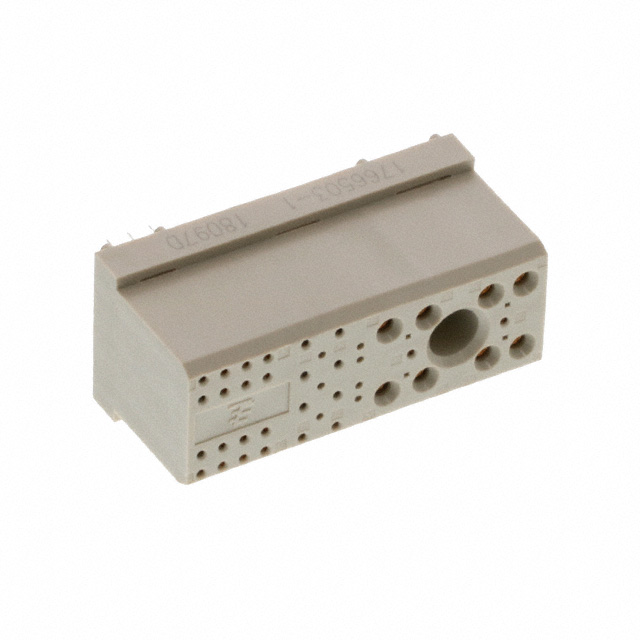

TE Connectivity AMP Connectors presents the 1766503-1, a vertical backplane assembly designed for AdvancedTCA® (ATCA) systems. This 34-position header features male pins and blades with a gold contact finish, specified at 30.0µin (0.76µm) for enhanced conductivity and durability. The contact layout typically includes 26 signal and 8 power contacts, catering to high-density interconnect requirements.
Engineered for through-hole mounting, this connector utilizes a press-fit termination method, ensuring robust mechanical and electrical connections within demanding backplane applications. The gray housing incorporates a board guide for simplified insertion and alignment. This component is prevalent in telecommunications infrastructure, high-performance computing, and data networking equipment.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 19 week(s)Product Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Bulk |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | - |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | AdvancedTCA® |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 26 Signal, 8 Power |
| Number of Columns | - |
