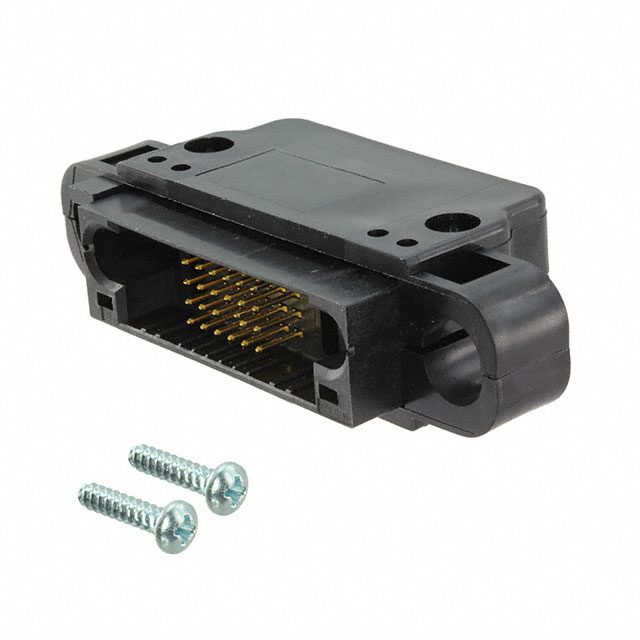

1600236-4
CONN HDR MULTI-BEAM 26POS PNL MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
26 Connector Header, Male Pins and Blades Panel Mount Multi-Beam
Additional Information
Series: MULTI-BEAM XLRoHS Status: Vendor undefinedManufacturer Lead Time: Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Bulk |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Panel Mount |
| Number of Positions | 26 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Crimp |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 2 Power |
| Number of Columns | - |
