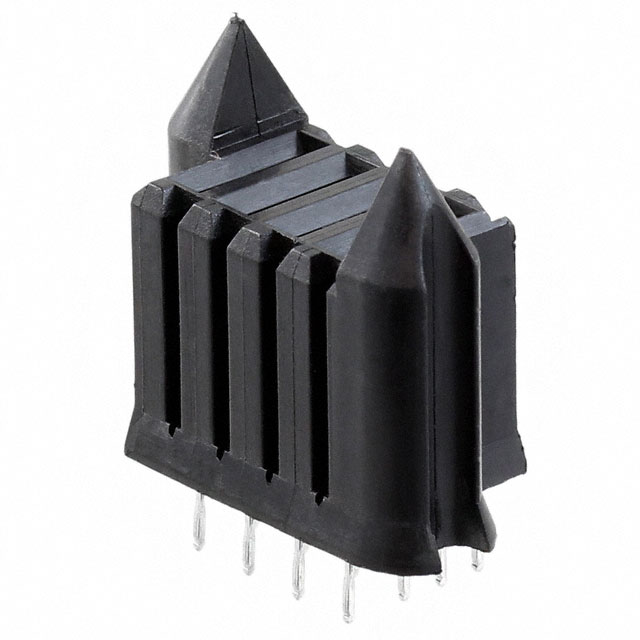

1489715-2
CONN RCPT MINI-DRAWER 4POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
4 Connector Receptacle, Female Blade Sockets Through Hole Black Mini-Drawer
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Tube |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Pitch | 0.118"" (3.00mm) |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Mini-Drawer |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Layout, Typical | 4 Power |
| Number of Columns | - |
