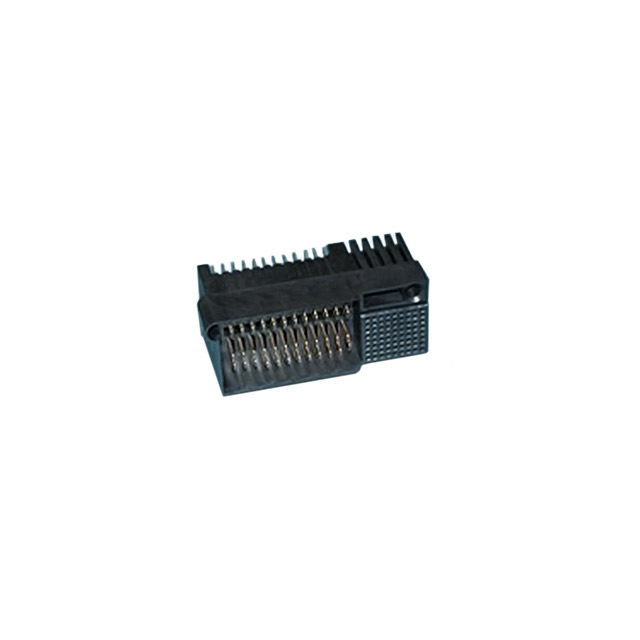

1469922-1
CONN PLUG MTCA 96POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MINIPAK HD series plug connector, part number 1469922-1. This 96-position through-hole connector features male blades and female sockets designed for MicroTCA™ daughtercard applications. The contact finish is gold with a thickness of 30.0µin (0.76µm). The typical contact layout includes 72 signal and 24 power positions, with a pitch of 0.079" (2.00mm). This component utilizes press-fit termination and includes mating guides for proper alignment. It is packaged in a tube. This connector is commonly employed in telecommunications infrastructure and high-performance computing systems.
Additional Information
Series: MINIPAK HDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Tube |
| Connector Type | Plug, Male Blades and Female Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Daughtercard |
| Connector Style | MicroTCA™ |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 72 Signal, 24 Power |
| Number of Columns | - |
Request a Quote
Clients Also Buy

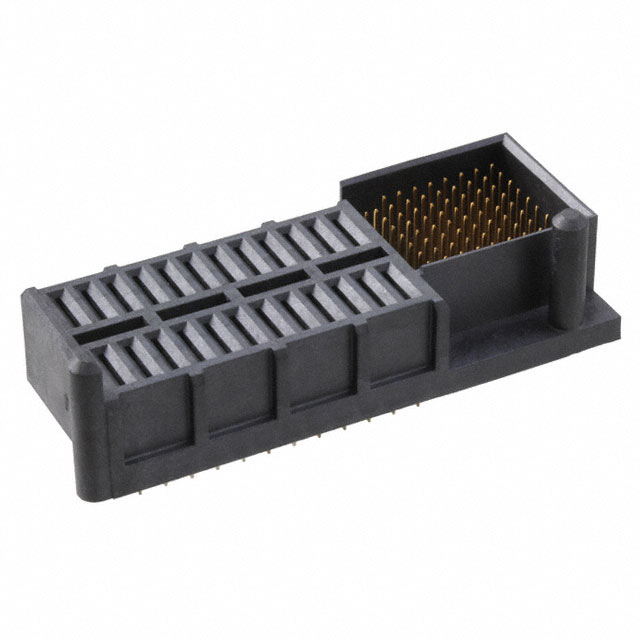

1469920-1
CONN RCPT MTCA 96POS PCB

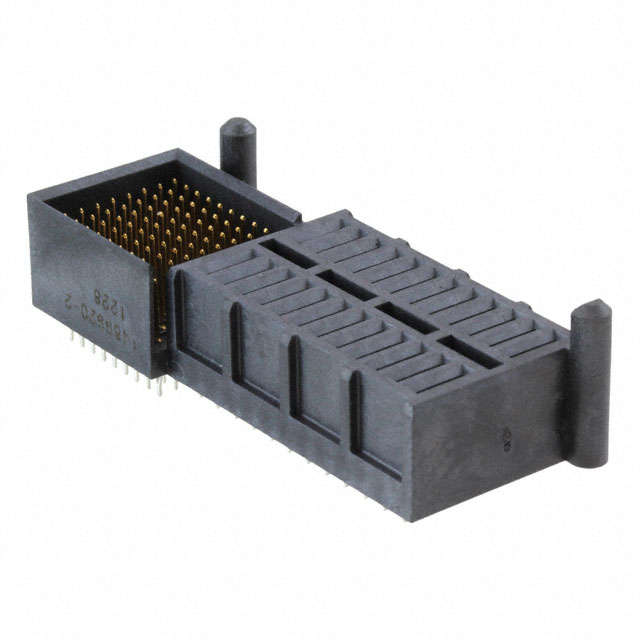

1469920-2
CONN RCPT MTCA 96POS PCB

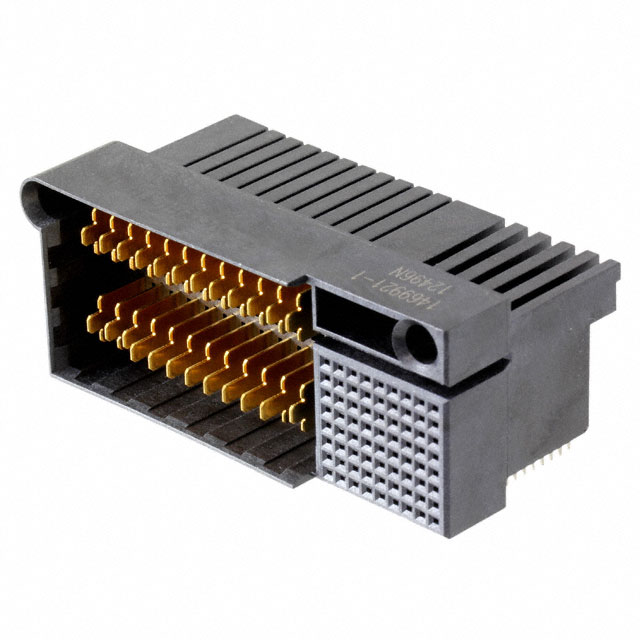

1469921-1
