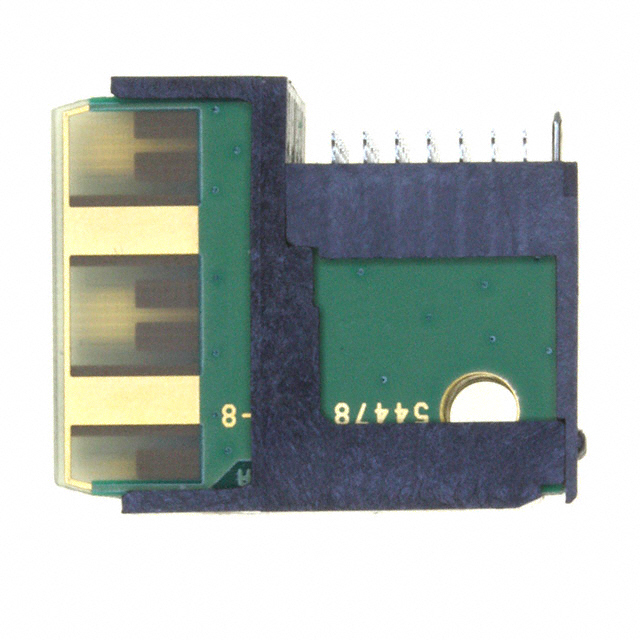

1410971-3
CONN PLUG VITA46 56POS EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
56 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Half, Left End
Additional Information
Series: MULTIGIG RT2RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Plug, Male Blades |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 56 |
| Pitch | 0.071"" (1.80mm) |
| Number of Rows | 7 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Daughtercard |
| Connector Style | VITA 46, Half, Left End |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Layout, Typical | 16 Signal Pairs, 4 Single Signal, 20 Ground |
| Number of Columns | 8 |
