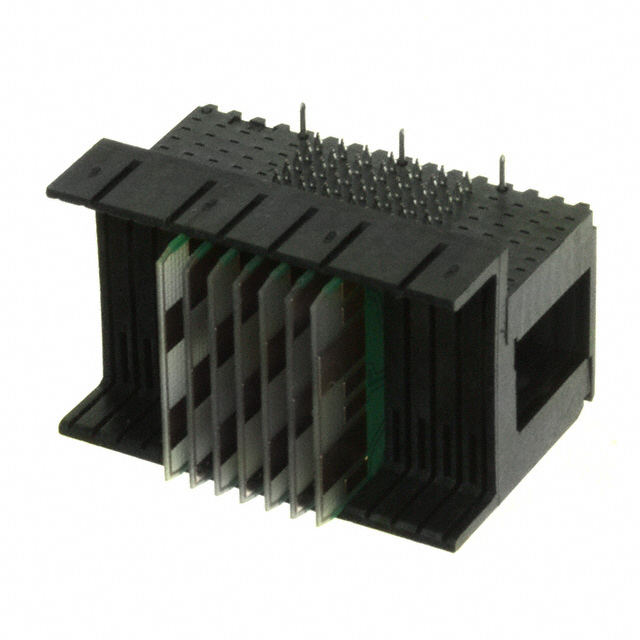

1410303-1
CONN PLUG VITA41 49POS EDGE MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
49 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 41, Center
Additional Information
Series: MULTIGIG RT2RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tube |
| Connector Type | Plug, Male Blades |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 49 |
| Pitch | 0.071"" (1.80mm) |
| Number of Rows | 7 |
| Number of Positions Loaded | - |
| Termination | Solder |
| Connector Usage | Daughtercard |
| Connector Style | VITA 41, Center |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 14 Signal Pairs, 3 Single Signal, 18 Ground |
| Number of Columns | 15 (7 filled) |
Request a Quote
