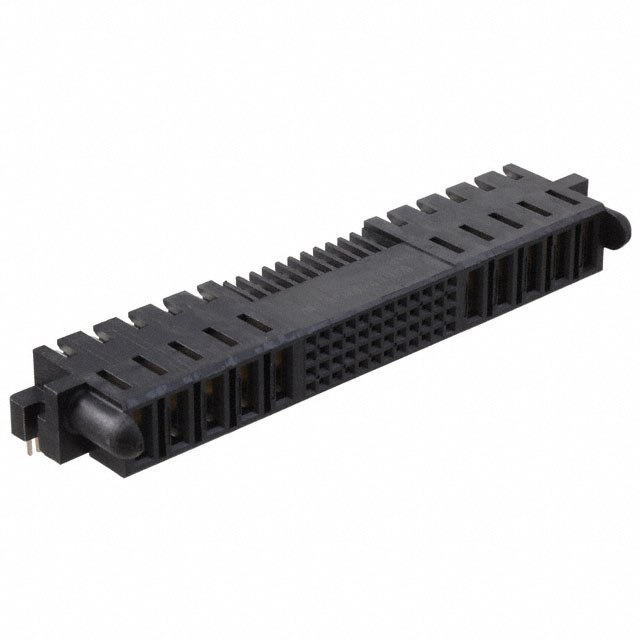

1-6450880-8
CONN RCPT MULTI-BEAM 58P EDGE MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL series offers the 1-6450880-8, a 58-position receptacle designed for edge mounting. This right-angle, through-hole component features a robust design with 48 signal and 10 power contacts, utilizing a 0.100" (2.54mm) pitch. The connector incorporates board lock and mating guide features for enhanced assembly and system integrity. Termination is achieved via a press-fit method. This receptacle is a key component in high-density power and signal interconnect applications within the data center, telecommunications, and industrial automation sectors. Packaged in a tray for efficient handling.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | - |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 58 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 48 Signal, 10 Power |
| Number of Columns | - |
