1-6450861-2

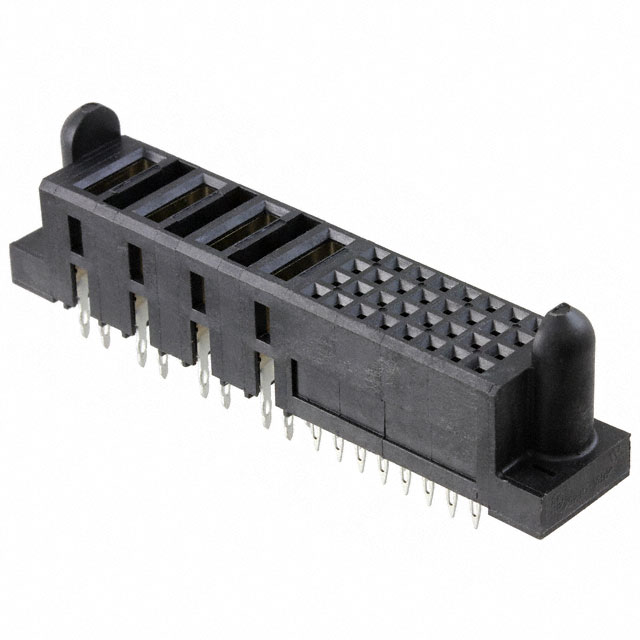

CONN RCPT MULTI-BEAM 36POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XLE series receptacle, part number 1-6450861-2, offers a 36-position through-hole configuration designed for high-density power and signal applications. This receptacle features female sockets and blade sockets with a gold contact finish, specified at 30.0µin (0.76µm) for enhanced conductivity and durability. The contact layout is typically configured with 32 signal and 4 power contacts, supporting robust power delivery. Key features include board lock for secure mounting and guide pins to facilitate proper mating alignment. The 2.54mm (0.100") pitch and press-fit termination method ensure reliable and efficient PCB assembly. This component is widely utilized in demanding industries such as telecommunications, data networking, and industrial automation where high-performance interconnects are critical. Packaged in trays for convenient handling.
Additional Information
Series: MULTI-BEAM XLERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 32 Signal, 4 Power |
| Number of Columns | - |
