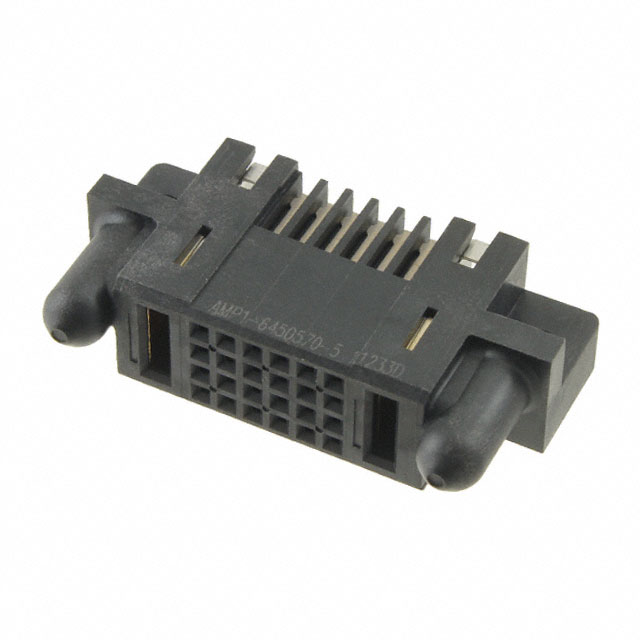

1-6450570-5
CONN RCPT MULTI-BEAM 26POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL series receptacle, part number 1-6450570-5, offers a robust 26-position, 4-row configuration. This through-hole, right-angle connector features female sockets and blade sockets with a 0.100" (2.54mm) pitch. The contact finish is gold with a thickness of 30.0µin (0.76µm) for enhanced performance and durability. It includes a guide pin for proper alignment and supports press-fit termination. The contact layout is typically 24 signal contacts and 2 power contacts, with all positions loaded. This component is utilized in demanding applications within the telecommunications and data storage industries. It is supplied in Tray packaging.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 2 Power |
| Number of Columns | - |
