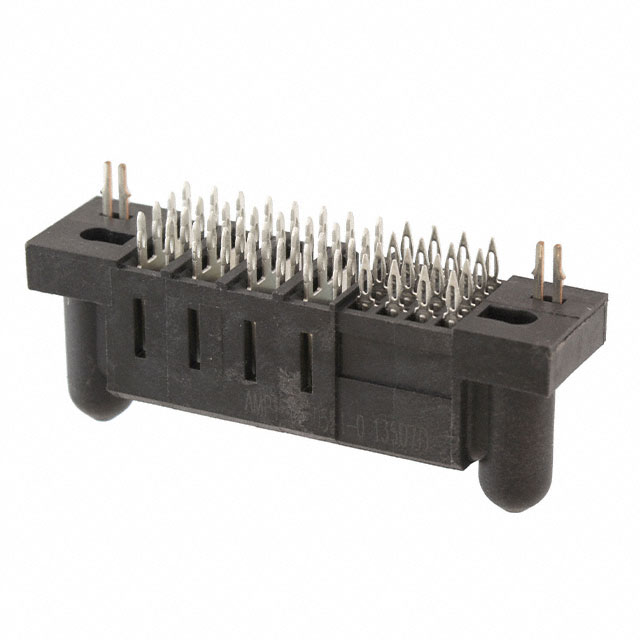

1-6450551-0
CONN RCPT MULTI-BEAM 20POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL series 1-6450551-0 is a 20-position receptacle designed for robust PCB mounting. This black connector features a multi-beam contact system with female sockets and blade sockets, offering a high-density interconnect solution. The contact finish is gold with a 30.0µin (0.76µm) thickness, ensuring excellent conductivity and durability. The typical contact layout consists of 16 signal and 4 power contacts, supporting demanding power and data transmission requirements. Key features include board lock for secure mounting and guide pins for proper alignment. Termination is achieved via a press-fit method, facilitating efficient assembly without soldering. This receptacle is commonly employed in high-performance applications within the telecommunications, industrial, and data processing industries. It is supplied in tray packaging.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Pitch | - |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 16 Signal, 4 Power |
| Number of Columns | - |
