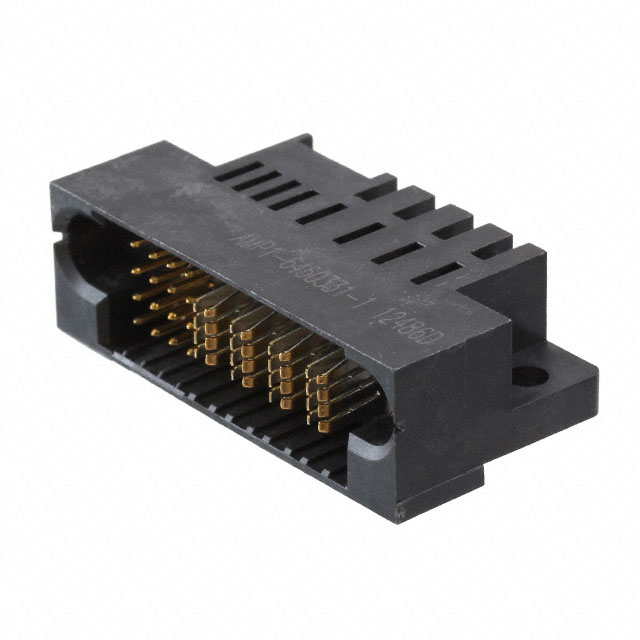

1-6450331-1
CONN RCPT MULTI-BEAM 20POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL Series 1-6450331-1 is a 20-position right-angle receptacle designed for PCB mounting. This component features a through-hole termination method with a pitch of 0.100" (2.54mm). The connector houses a configuration of 16 signal contacts and 4 power contacts, utilizing both female sockets and blade sockets. It includes a mating guide for enhanced alignment during assembly. This receptacle is packaged in a tray. The MULTI-BEAM XL connector family is widely utilized in demanding applications across the telecommunications, industrial automation, and automotive sectors, where high density and robust power/signal delivery are critical.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | - |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 16 Signal, 4 Power |
| Number of Columns | - |
