1-6450170-9
CONN RCPT MULTI-BEAM 22POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

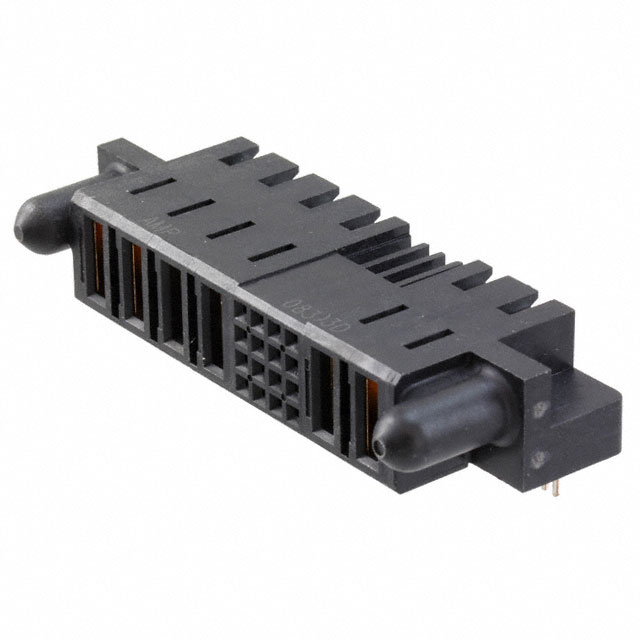

TE Connectivity AMP Connectors MULTI-BEAM XL 1-6450170-9 is a 22-position, right-angle receptacle designed for PCB mounting. This component features a through-hole termination with a solder process. The receptacle houses a mix of 16 signal contacts and 6 power contacts, utilizing a 0.100" (2.54mm) pitch. Contact finish is gold with a thickness of 30.0µin (0.76µm). Key features include board lock and guide pins for robust connection integrity. This connector is suitable for high-power and high-density applications within the telecommunications, data center, and industrial automation sectors. It is supplied in tray packaging.
Additional Information
Series: MULTI-BEAM XLRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 22 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 16 Signal, 6 Power |
| Number of Columns | - |
