1-6450142-7
CONN RCPT MULTI-BEAM 28POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

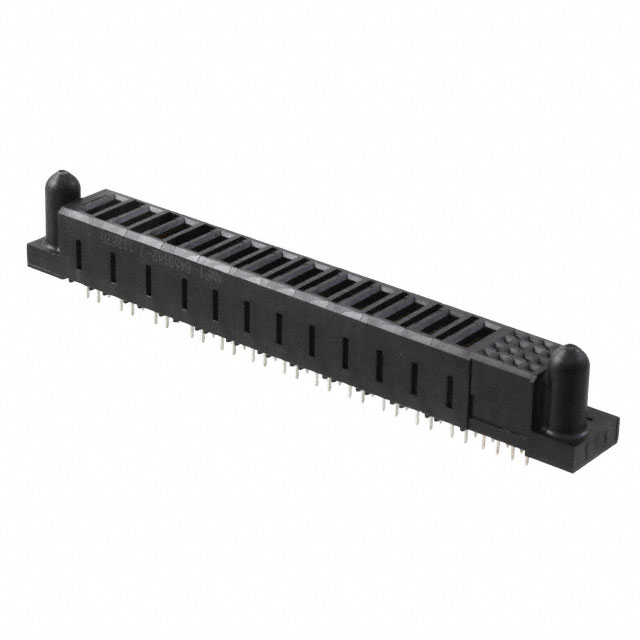

TE Connectivity AMP Connectors MULTI-BEAM XL Series 1-6450142-7 is a 28-position receptacle connector for PCB mounting. This through-hole component features female sockets and blade sockets with a gold contact finish, measuring 30.0µin (0.76µm). The connector boasts a 0.100" (2.54mm) pitch and a 4-row configuration, with a typical contact layout of 16 signal and 9 power positions. Designed for robust connectivity, it includes a guide pin for proper mating. The black, multi-beam connector is supplied in box packaging and is suitable for high-density power and signal applications. This component is commonly utilized in telecommunications, data centers, and industrial automation equipment.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Box |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 16 Signal, 9 Power |
| Number of Columns | - |
