CONN RCPT MULTI-BEAM 26POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

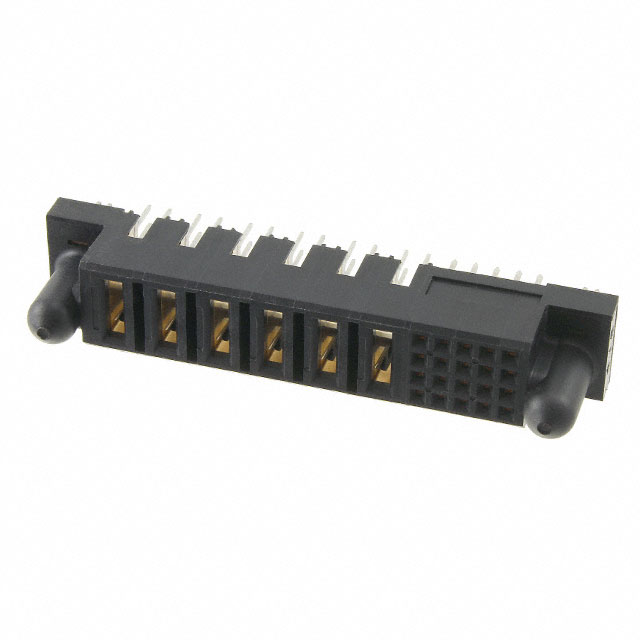

TE Connectivity AMP Connectors MULTI-BEAM XL series receptacle, part number 1-6450142-3, offers a robust 26-position solution designed for high-density board-to-board interconnects. This black receptacle features female sockets and blade sockets with a 0.100" (2.54mm) pitch, arranged in a 4-row configuration. The contact finish is gold with a thickness of 30.0µin (0.76µm) to ensure excellent conductivity and durability.
Optimized for signal and power delivery, this component typically includes 20 signal contacts and 6 power contacts. Key features such as board lock and guide pins facilitate secure and accurate mating during assembly. Mounting is achieved via through-hole termination with a solder process. The MULTI-BEAM XL connector is commonly utilized in demanding applications within the telecommunications, data networking, and industrial automation sectors, where high reliability and performance are critical. This part is supplied in tray packaging.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 20 Signal, 6 Power |
| Number of Columns | - |
