1-6450122-9
CONN HEADER MULTI-BEAM 24POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

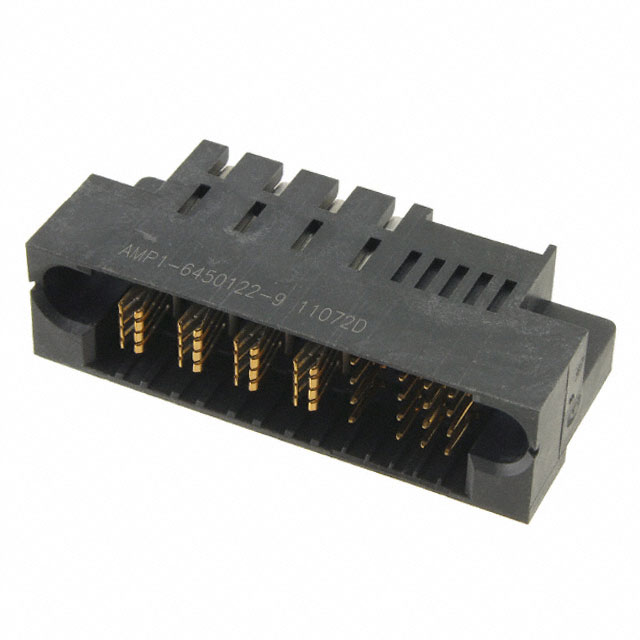

TE Connectivity AMP Connectors MULTI-BEAM XL series header, part number 1-6450122-9, is a 24-position, right-angle, through-hole connector with male pins and blades. This header features a 2.54mm pitch and is designed for PCB mounting. The contact finish is gold with a thickness of 30.0µin (0.76µm). It offers a contact layout of 20 signal and 4 power positions. Key features include board lock and mating guide for robust assembly. This component is commonly utilized in industrial automation, telecommunications, and data storage applications.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Box |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | 20 |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 20 Signal, 4 Power |
| Number of Columns | - |
