1-5532825-4
CONN RCPT HD 150POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

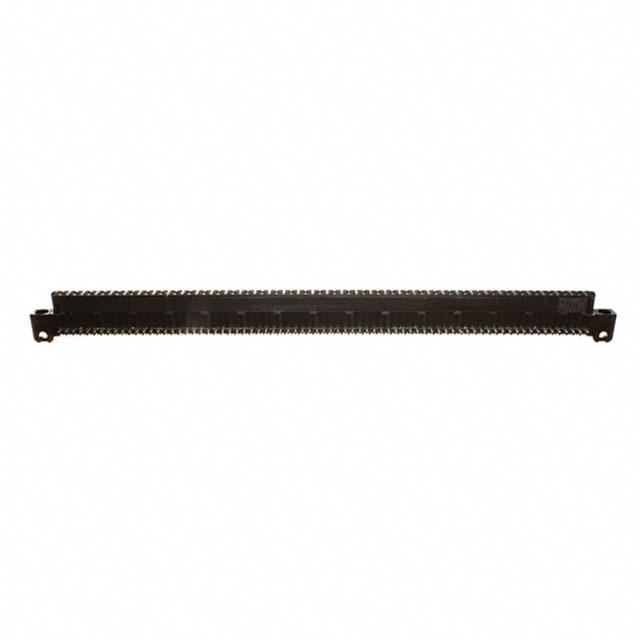

This TE Connectivity AMP Connectors receptacle, part number 1-5532825-4, is a 150-position female socket connector designed for printed circuit board (PCB) mounting. Belonging to the High Density Interconnect (HDI) series, it features a right-angle, through-hole termination and a natural color housing. The connector utilizes gold-plated contacts with a thickness of 30.0µin (0.76µm) for robust conductivity and durability, a standard for demanding applications. It incorporates mating guides to facilitate accurate and secure connection. This component is suitable for high-density interconnect applications and is commonly found in industrial automation, telecommunications, and data acquisition systems. The connector is supplied in tube packaging.
Additional Information
Series: HDI (High Density Interconnect)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 150 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | High Density (HDC, HDI, HPC) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
