1-292192-3
CONN RCPT MINI-DRAWER 10P PNL MTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

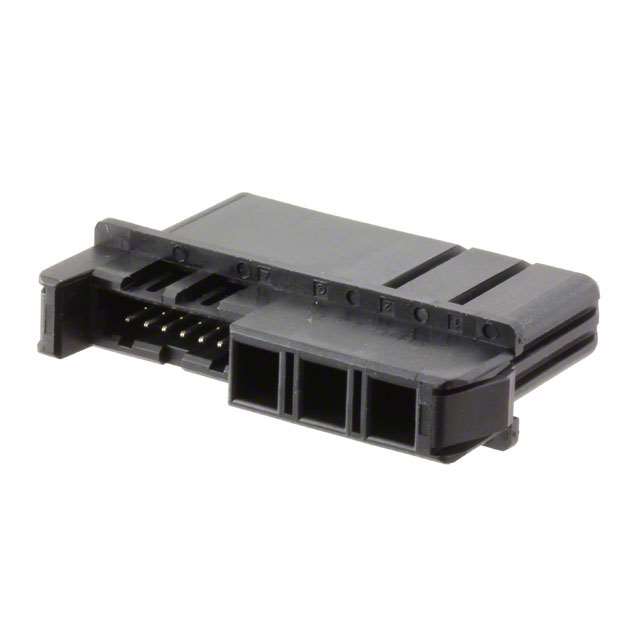

TE Connectivity AMP Connectors 1-292192-3 is a 10-position Mini-Drawer receptacle. This panel mount connector features a black housing and a single row configuration. The contact layout is designed for 7 signal, 2 power, and 1 ground connection. Termination is achieved via crimp. This component is commonly utilized in industrial automation, telecommunications infrastructure, and data acquisition systems. The product is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Panel Mount |
| Number of Positions | 10 |
| Pitch | - |
| Number of Rows | 1 |
| Number of Positions Loaded | 7 |
| Termination | Crimp |
| Connector Usage | - |
| Connector Style | Mini-Drawer |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 7 Signal, 2 Power, 1 Ground |
| Number of Columns | - |
