5-293522-1
CONN SSL SPLICE 4POS 2.5MM IDCManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

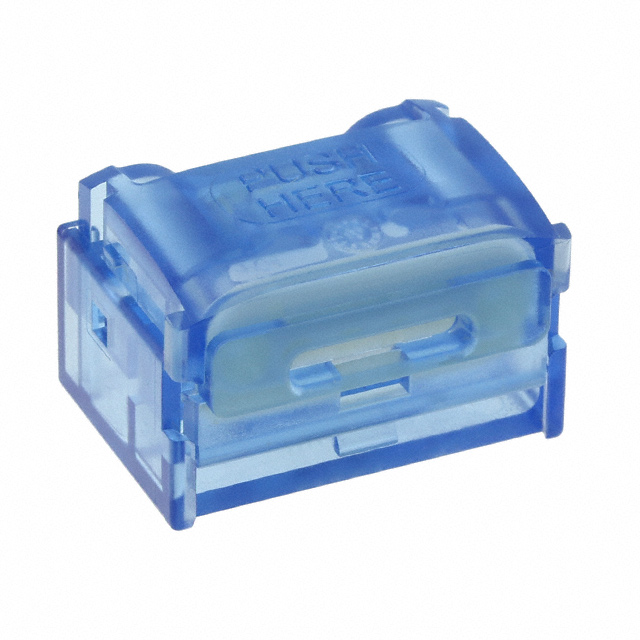

TE Connectivity AMP Connectors CoolSplice 5-293522-1 is a 4-position IDC splice connector designed for solid-state lighting applications. Featuring a 2.50mm pitch and a cable-to-cable/wire style, this component utilizes Insulation Displacement Connection (IDC) termination for efficient wire joining. The gel-filled housing, constructed from polycarbonate (PC), is available in blue and transparent colors, providing environmental protection. This free-hanging, in-line connector is rated for wire gauges of 24 AWG and 26 AWG and operates within a temperature range of -40°C to 100°C. It is commonly found in the lighting and automotive industries. The part is supplied in tray packaging.
Additional Information
Series: CoolSpliceRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Gel Filled |
| Packaging | Tray |
| Connector Type | Splice |
| Contact Finish | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 24 AWG, 26 AWG |
| Pitch | 0.098"" (2.50mm) |
| Style | Cable/Wire to Cable/Wire |
| Operating Temperature | -40°C ~ 100°C |
| Fastening Type | - |
| Termination | IDC |
| Contact Material | - |
| Housing Material | Polycarbonate (PC) |
| Housing Color | Blue, Transparent |
| Number of Positions | 4 |
