293696-3
CONN SSL PLUG 5POS SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

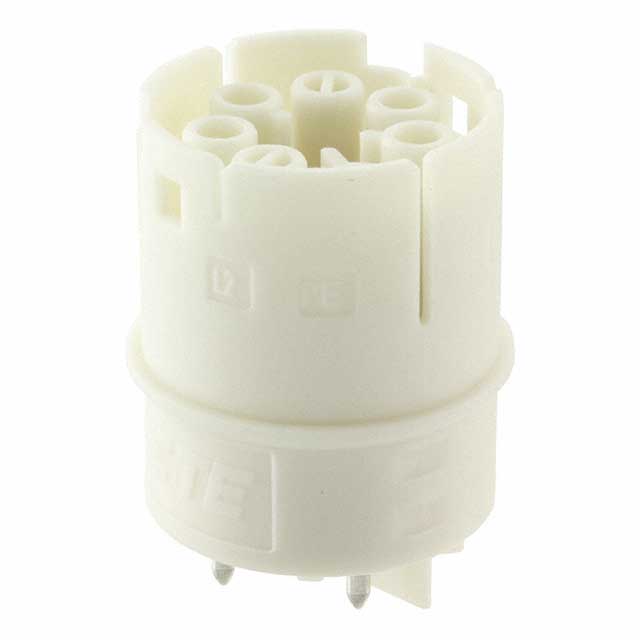

TE Connectivity AMP Connectors Nector M series 293696-3 is a 5-position SSL connector plug featuring female sockets. Designed for board-to-cable or wire applications, this keyed connector utilizes a solder termination for robust connections. The housing, constructed from glass-filled Polyamide (PA) and Nylon, offers durability and is provided in a natural color. With a through-hole mounting type, it operates reliably within a temperature range of -40°C to 85°C. This component is commonly employed in solid-state lighting applications.
Additional Information
Series: Nector MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keyed |
| Packaging | Bulk |
| Connector Type | Plug, Female Sockets |
| Contact Finish | - |
| Mounting Type | Through Hole |
| Wire Gauge | - |
| Pitch | - |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | - |
| Termination | Solder |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Housing Color | Natural |
| Number of Positions | 5 |
