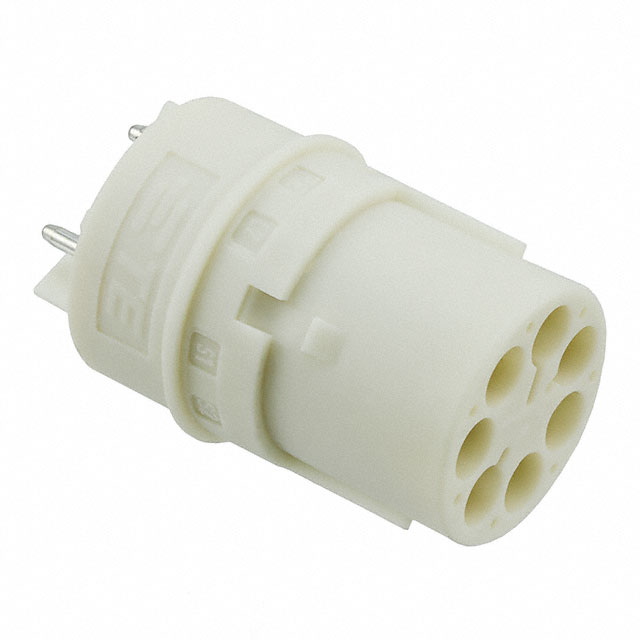

293695-3
CONN SSL RECEPTACLE 5POS SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors Nector M series receptacle connector, part number 293695-3. This 5-position male pin receptacle features a board-to-cable/wire style with solder termination. Constructed with a natural colored, glass-filled polyamide housing, it offers keyed features for correct mating. Designed for reliable operation within an ambient temperature range of -40°C to 85°C. This component is commonly utilized in solid-state lighting applications and general industrial control systems requiring robust, keyed connections. The through-hole mounting type ensures secure placement on PCBs. Packaged in bulk for large-scale deployment.
Additional Information
Series: Nector MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keyed |
| Packaging | Bulk |
| Connector Type | Receptacle, Male Pins |
| Contact Finish | - |
| Mounting Type | Through Hole |
| Wire Gauge | - |
| Pitch | - |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | - |
| Termination | Solder |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Housing Color | Natural |
| Number of Positions | 5 |
