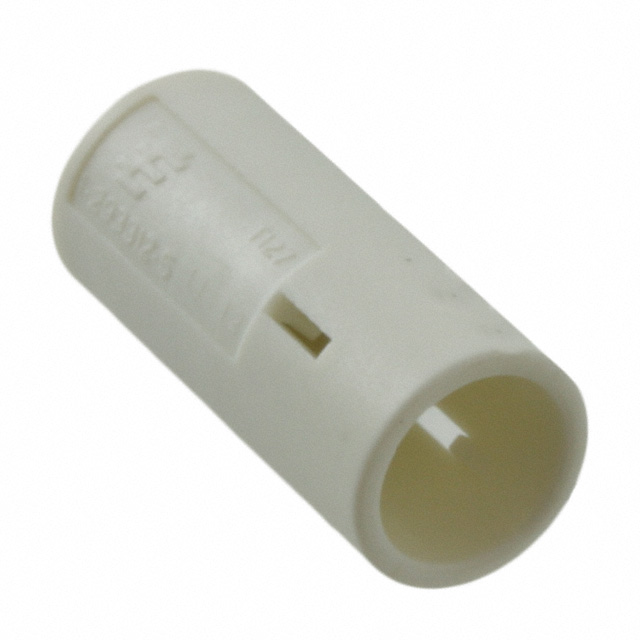

293653-5
CONN SSL OUTLET HDR 2POS 3.7MMManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors Nector S series, part number 293653-5, is a 2-position SSL outlet header designed for board-to-cable/wire applications. Featuring a 3.70mm (0.146") pitch, this connector utilizes male pins with a tin contact finish for reliable termination. The white housing incorporates board guides and LV-2 keying for secure mating and proper orientation. This through-hole mount component operates within a temperature range of -40°C to 120°C. It is suitable for use in solid-state lighting applications. The component is supplied in bulk packaging.
Additional Information
Series: Nector SRoHS Status: Vendor undefinedManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Keying LV-2 |
| Packaging | Bulk |
| Connector Type | Outlet, Male Pin |
| Contact Finish | Tin |
| Mounting Type | Through Hole |
| Wire Gauge | - |
| Pitch | 0.146"" (3.70mm) |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Fastening Type | - |
| Termination | Solder |
| Contact Material | - |
| Housing Material | - |
| Housing Color | White |
| Number of Positions | 2 |
