293652-5
CONN SSL OUTLET HDR 2POS 3.7MMManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

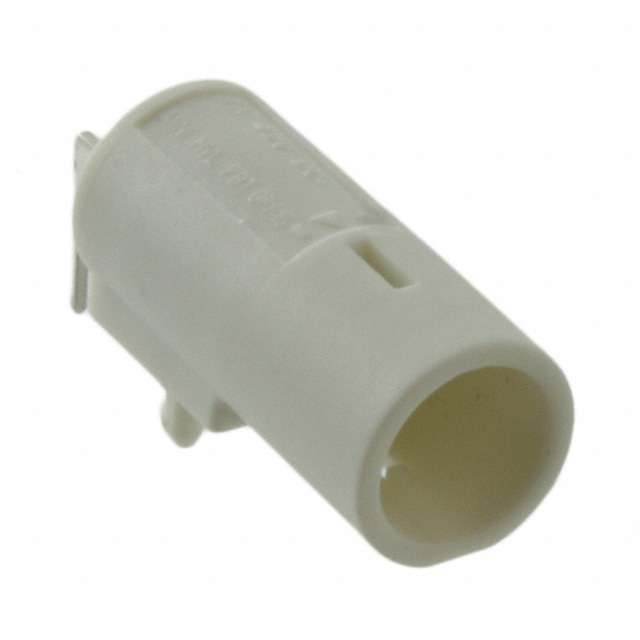

TE Connectivity AMP Connectors Nector S series 2-position outlet header, part number 293652-5, facilitates robust board-to-cable connections with its 3.70mm pitch. This right-angle, through-hole mounted SSL connector features male pins with a tin contact finish, designed for solder termination. The white housing, constructed from glass-filled Polybutylene Terephthalate (PBT), incorporates board lock and LV-2 keying for secure assembly. Operating across a temperature range of -40°C to 120°C, this component is suitable for demanding applications within the solid-state lighting industry. Supplied in bulk packaging.
Additional Information
Series: Nector SRoHS Status: Vendor undefinedManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Keying LV-2 |
| Packaging | Bulk |
| Connector Type | Outlet, Male Pin |
| Contact Finish | Tin |
| Mounting Type | Through Hole, Right Angle |
| Wire Gauge | - |
| Pitch | 0.146"" (3.70mm) |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Fastening Type | - |
| Termination | Solder |
| Contact Material | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Housing Color | White |
| Number of Positions | 2 |
