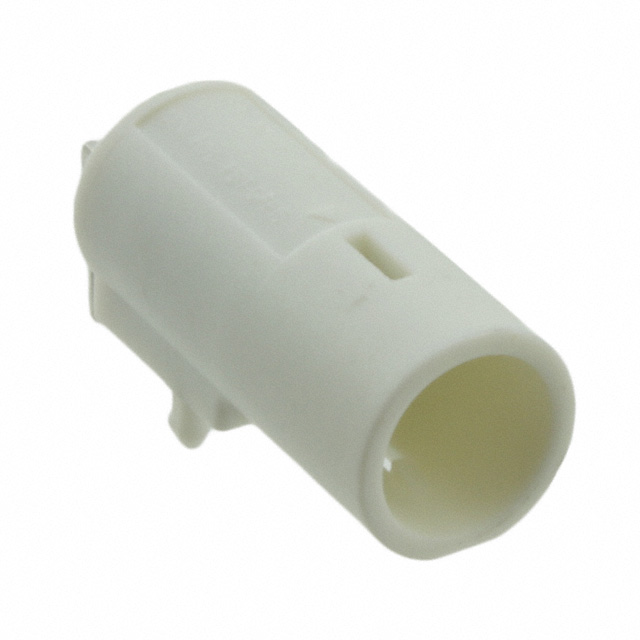

293652-2
CONN SSL OUTLET HDR 2POS 3.7MMManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors Nector S series, part number 293652-2, is a 2-position male pin SSL outlet connector. This right-angle, through-hole mount component features a 0.146" (3.70mm) pitch and a solder termination for board-to-cable or wire applications. The housing is constructed from glass-filled Polybutylene Terephthalate (PBT) in white and incorporates board lock and HV-3 keying features. Contact finish is tin. Operating temperature range is -40°C to 120°C. This connector is utilized in solid-state lighting and other power interconnect applications.
Additional Information
Series: Nector SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Keying HV-3 |
| Packaging | Bulk |
| Connector Type | Outlet, Male Pin |
| Contact Finish | Tin |
| Mounting Type | Through Hole, Right Angle |
| Wire Gauge | - |
| Pitch | 0.146"" (3.70mm) |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Fastening Type | - |
| Termination | Solder |
| Contact Material | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Housing Color | White |
| Number of Positions | 2 |
