293649-1
CONN SSL T-SPLITTER 2POS 3.7MMManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

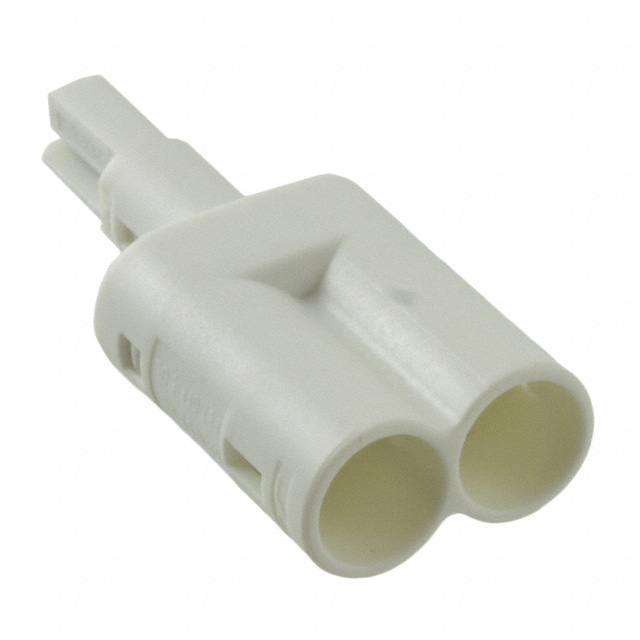

TE Connectivity AMP Connectors Nector S Series, part number 293649-1, is a 2-position T-splitter connector designed for high-volume Solid State Lighting (SSL) applications. This in-line, free-hanging component facilitates cable-to-cable or wire-to-cable connections with a 3.70mm (0.146") pitch. The housing, constructed from white Polybutylene Terephthalate (PBT) with glass filling, ensures durability and resistance to environmental factors. Keying features, specifically HV-2 and HV-4, are incorporated for proper mating and to prevent incorrect connections. The connector operates within a temperature range of -40°C to 120°C. This component is commonly utilized in the automotive and industrial lighting sectors.
Additional Information
Series: Nector SRoHS Status: Request inventory verificationManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying HV-2 and HV-4 |
| Packaging | Bulk |
| Connector Type | T-Splitter |
| Contact Finish | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | - |
| Pitch | 0.146"" (3.70mm) |
| Style | Cable/Wire to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Fastening Type | - |
| Termination | - |
| Contact Material | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Housing Color | White |
| Number of Positions | 2 |
