293616-1
PIN HSG FREE HANGING M-LINE 5 POManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

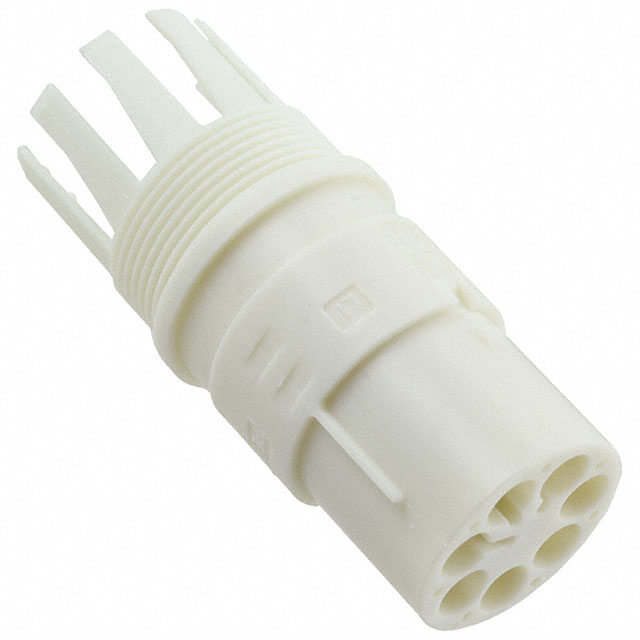

TE Connectivity AMP Connectors Nector M series receptacle housing, part number 293616-1, offers a robust 5-position solution for pin contacts. This free-hanging (in-line) housing is constructed from glass-filled polyamide (PA) for enhanced durability and features a natural housing color with keying for proper mating. Designed for cable/wire to cable/wire or board applications, it utilizes crimp termination. The Nector M series is widely utilized in the solid-state lighting industry, providing reliable connections for demanding environments. Operating within a temperature range of -40°C to 85°C, this component is supplied in bulk packaging.
Additional Information
Series: Nector MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keyed |
| Packaging | Bulk |
| Connector Type | Receptacle Housing for Pin Contact |
| Contact Finish | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | - |
| Pitch | - |
| Style | Cable/Wire to Cable/Wire or Board |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | - |
| Termination | Crimp |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Housing Color | Natural |
| Number of Positions | 5 |
