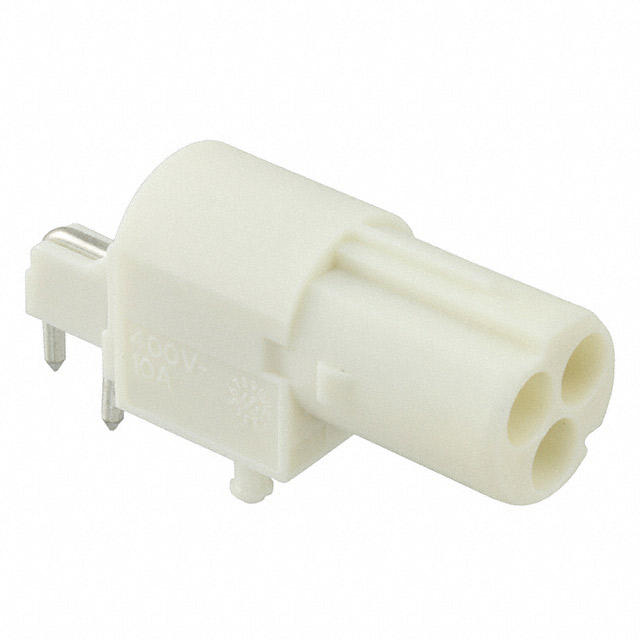

293593-1
CONN SSL RECEPTACLE 3POS SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors Nector M Series 293593-1 is a 3-position receptacle connector designed for board-to-cable applications. This SSL connector features male pins with a right-angle, through-hole mounting style, facilitating efficient PCB integration. The housing, constructed from glass-filled polyamide (PA) for enhanced durability, offers a natural color and incorporates keying for proper mating. Designed for reliable solder termination, this component operates within a temperature range of -40°C to 85°C. Its robust construction and secure board lock mechanism make it suitable for demanding applications within the solid-state lighting industry. Supplied in bulk packaging.
Additional Information
Series: Nector MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Keyed |
| Packaging | Bulk |
| Connector Type | Receptacle, Male Pins |
| Contact Finish | - |
| Mounting Type | Through Hole, Right Angle |
| Wire Gauge | - |
| Pitch | - |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 85°C |
| Fastening Type | - |
| Termination | Solder |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Housing Color | Natural |
| Number of Positions | 3 |
