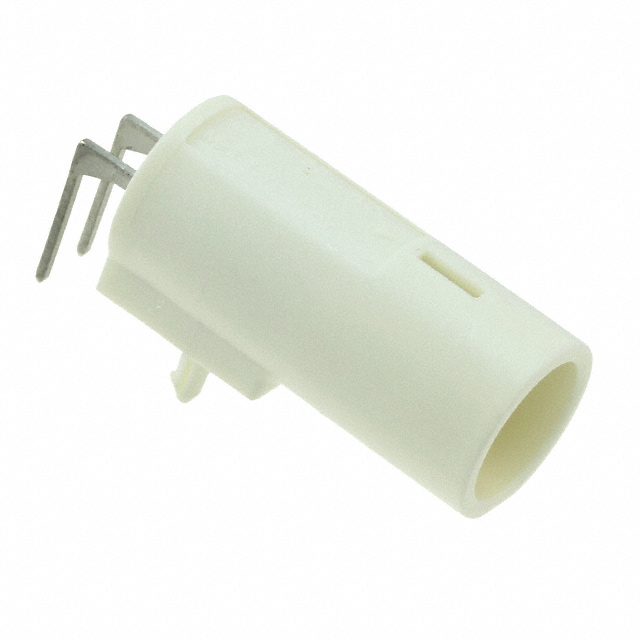

293315-1
CONN SSL OUTLET HDR 2POS 3.7MMManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors Nector S series, part number 293315-1, is a 2-position SSL outlet connector. This right-angle, through-hole mounted component features a 3.70mm pitch and is designed for board-to-cable or wire applications. The male pin termination utilizes a solder connection. The durable white housing is constructed from glass-filled Polyamide (PA66), also known as Nylon 6/6, and incorporates board lock and HV-1 keying features for secure mating. This connector operates within a temperature range of -40°C to 120°C and is supplied in bulk packaging. It finds application in solid-state lighting systems.
Additional Information
Series: Nector SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Keying HV-1 |
| Packaging | Bulk |
| Connector Type | Outlet, Male Pin |
| Contact Finish | Tin |
| Mounting Type | Through Hole, Right Angle |
| Wire Gauge | - |
| Pitch | 0.146"" (3.70mm) |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Fastening Type | - |
| Termination | Solder |
| Contact Material | - |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Housing Color | White |
| Number of Positions | 2 |
