293313-5
CONN SSL OUTLET HDR 2POS 3.7MMManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

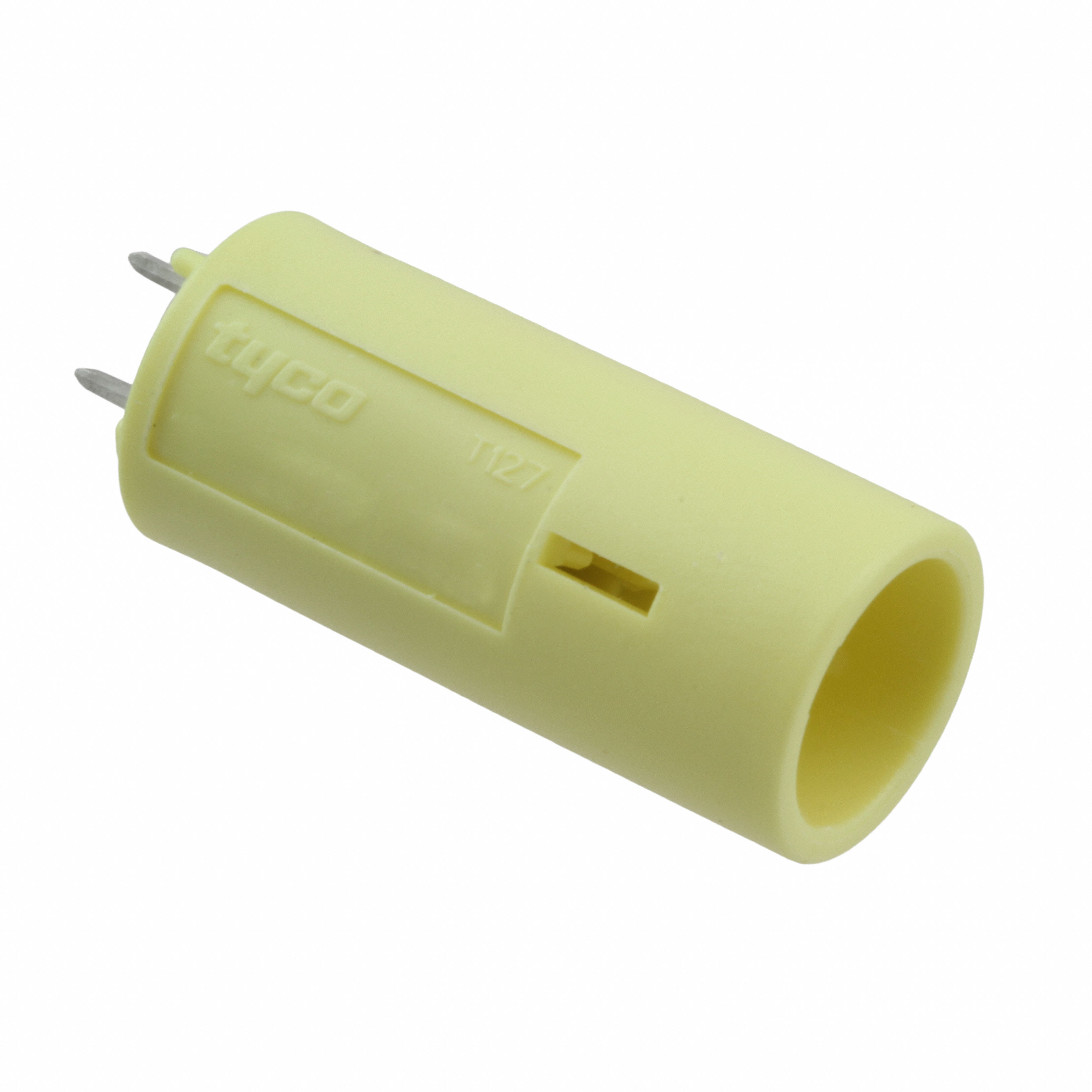

TE Connectivity AMP Connectors Nector S series, part number 293313-5, is a 2-position male pin SSL outlet connector designed for board-to-cable/wire applications. Featuring a 3.70mm pitch, this component utilizes a solder termination method. The housing is constructed from yellow material and incorporates board guide and LV-2 keying features for secure and proper assembly. With an operating temperature range of -40°C to 120°C, it is suitable for demanding environments. This connector finds application in the solid-state lighting industry. It is supplied in bulk packaging.
Additional Information
Series: Nector SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 55 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Keying LV-2 |
| Packaging | Bulk |
| Connector Type | Outlet, Male Pin |
| Contact Finish | Tin |
| Mounting Type | Through Hole |
| Wire Gauge | - |
| Pitch | 0.146"" (3.70mm) |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Fastening Type | - |
| Termination | Solder |
| Contact Material | - |
| Housing Material | - |
| Housing Color | Yellow |
| Number of Positions | 2 |
