2363638-2
LUMAWISE ENDURANCE S2 RECEPTACLEManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

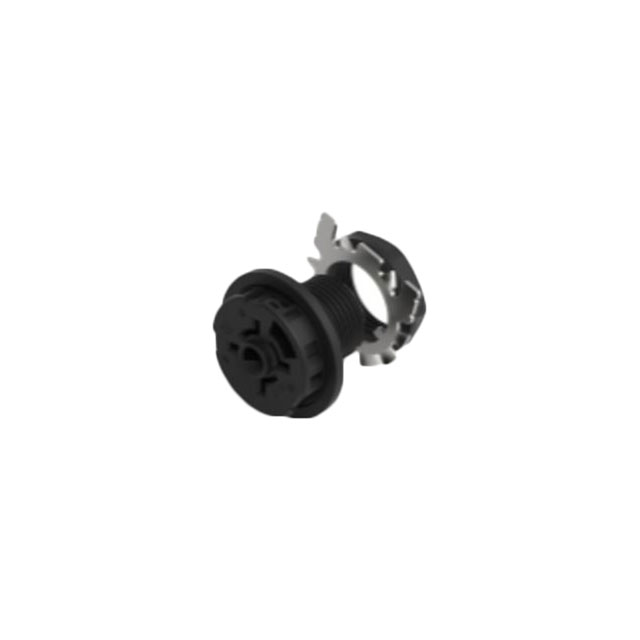

TE Connectivity AMP Connectors LUMAWISE ENDURANCE S2 Receptacle, part number 2363638-2, is a 4-position connector designed for solid-state lighting applications. This board-to-cable/wire receptacle features a poke-in termination for 18-20 AWG wire and a PCB mounting type. Constructed with a black Polybutylene Terephthalate (PBT) housing, it utilizes a copper alloy contact material with a tin finish. Operating within a temperature range of -40°C to 90°C, this component is suitable for demanding environments in the automotive and industrial sectors. Packaged in bags, the LUMAWISE ENDURANCE S2 Receptacle facilitates efficient assembly in SSL systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Mounting Type | PCB |
| Wire Gauge | 18-20 AWG |
| Pitch | - |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 90°C |
| Fastening Type | - |
| Termination | Poke-In |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Housing Color | Black |
| Number of Positions | 4 |
Request a Quote
