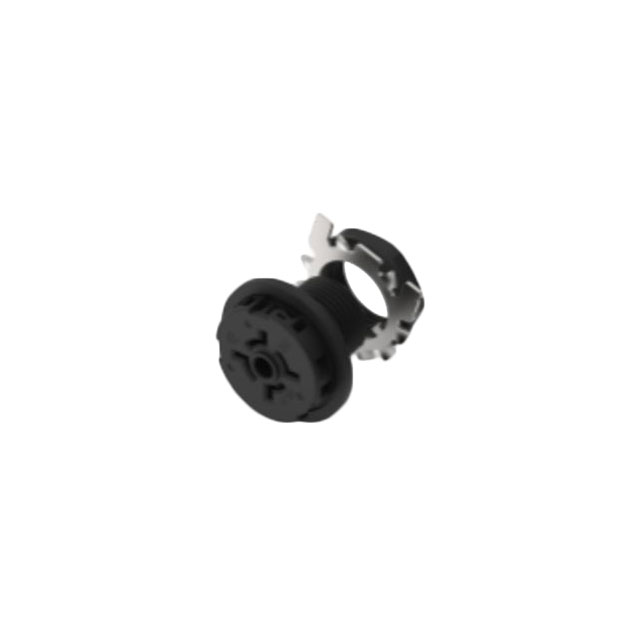

2363638-1
LUMAWISE ENDURANCE S2 RECEPTACLEManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More
The TE Connectivity AMP Connectors LUMAWISE ENDURANCE S2 Receptacle, part number 2363638-1, is a 4-position connector designed for solid-state lighting applications. This receptacle features a board-to-cable/wire style termination with a poke-in connection method, facilitating efficient assembly for wire gauges of 18-20 AWG. Constructed with a black Polybutylene Terephthalate (PBT) housing and a copper alloy contact material with a tin finish, it ensures durability and reliable electrical performance. The mounting type is PCB, and the operating temperature range is -40°C to 90°C. This component is commonly utilized in the automotive and industrial automation sectors for its robust design and ease of termination.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Mounting Type | PCB |
| Wire Gauge | 18-20 AWG |
| Pitch | - |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 90°C |
| Fastening Type | - |
| Termination | Poke-In |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Housing Color | Black |
| Number of Positions | 4 |
