2213617-3
HERM BLADE & RCPT,LATCH, POST,SEManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

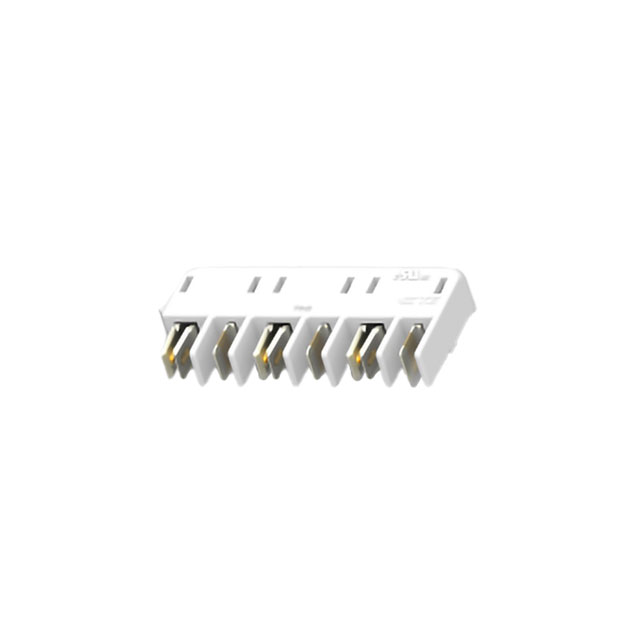

TE Connectivity AMP Connectors offers the 2213617-3, a hermaphroditic board-to-board connector designed for robust electrical interconnection. This 6-position blade and receptacle assembly features a 0.157" (4.00mm) pitch and utilizes a solder termination method. The connector is constructed with a Copper Alloy contact material plated with Gold for superior conductivity and durability, housed in Natural Liquid Crystal Polymer (LCP) for excellent thermal and mechanical performance. Key features include a locking ramp for secure mating and integrated board guides to facilitate precise alignment during assembly. This component is suitable for surface mount, right-angle board edge mounting and operates within a temperature range of -40°C to 105°C. The 2213617-3 is commonly employed in applications such as solid-state lighting systems, industrial automation, and automotive electronics. It is supplied on tape and reel for efficient automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Connector Type | Blade and Receptacle, Hermaphroditic |
| Contact Finish | Gold |
| Mounting Type | Board Edge, Surface Mount, Right Angle |
| Wire Gauge | - |
| Pitch | 0.157"" (4.00mm) |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Fastening Type | Locking Ramp |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Natural |
| Number of Positions | 6 |
