2213614-3
HERM BLADE & REC,6 POS, LATCH, SManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

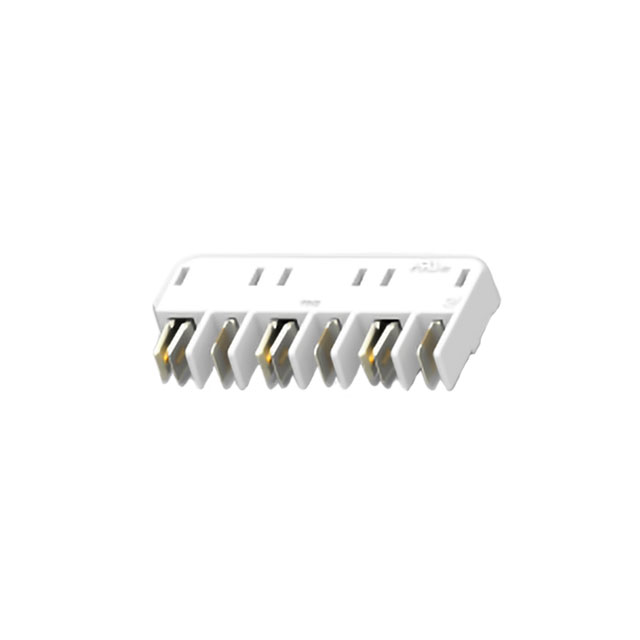

TE Connectivity AMP Connectors offers the 2213614-3, a 6-position hermaphroditic blade and receptacle connector with a 0.157" (4.00mm) pitch. This surface-mount, right-angle connector utilizes a solder termination and a locking ramp for secure mating. The gold-plated copper alloy contacts are housed in natural-colored Liquid Crystal Polymer (LCP) for durability. Designed for board-to-board or cable applications, it operates within a temperature range of -40°C to 105°C. This component is commonly found in solid-state lighting applications. The 2213614-3 is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 46 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Connector Type | Blade and Receptacle, Hermaphroditic |
| Contact Finish | Gold |
| Mounting Type | Board Edge, Surface Mount, Right Angle |
| Wire Gauge | - |
| Pitch | 0.157"" (4.00mm) |
| Style | Board to Board or Cable |
| Operating Temperature | -40°C ~ 105°C |
| Fastening Type | Locking Ramp |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Natural |
| Number of Positions | 6 |
