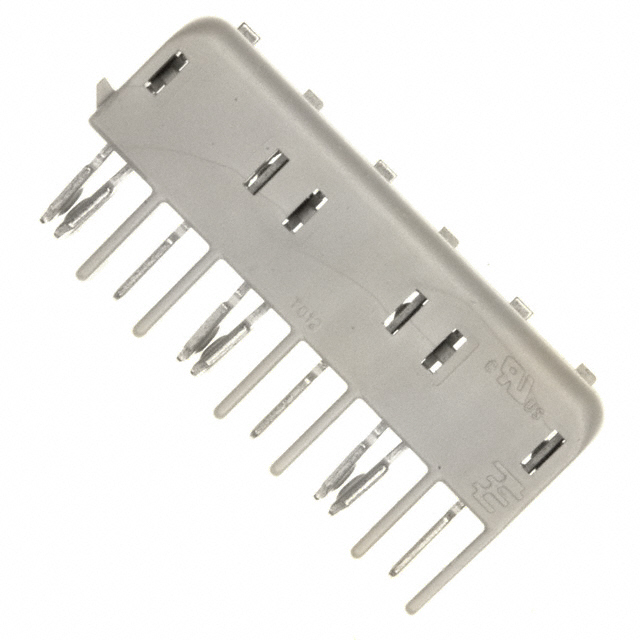

2154640-3
HERM BLADE & RECEPT ASSY W/LATCHManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors SSL Connector, part number 2154640-3, is a hermaphroditic board-to-board connector assembly designed for high-density applications. This 6-position unit features a 0.157" (4.00mm) pitch and utilizes a blade and receptacle configuration. The contact material is a copper alloy with a tin finish, ensuring reliable conductivity. The housing is constructed from Liquid Crystal Polymer (LCP) in a natural color, providing excellent thermal stability and chemical resistance. Mounting is achieved via a right-angle, surface-mount, board edge design with a locking ramp for secure mating. This component operates within a temperature range of -40°C to 105°C and is supplied on tape and reel for efficient automated assembly. It is commonly employed in solid-state lighting systems and other demanding electronic interconnect applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Connector Type | Blade and Receptacle, Hermaphroditic |
| Contact Finish | Tin |
| Mounting Type | Board Edge, Surface Mount, Right Angle |
| Wire Gauge | - |
| Pitch | 0.157"" (4.00mm) |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Fastening Type | Locking Ramp |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Natural |
| Number of Positions | 6 |
