1-2363638-2
RCPT,LUMAWISE ENDURANCE S2 KIT,KManufacturer: TE Connectivity AMP Connectors
Categories: Solid State Lighting Connector Assemblies
Quality Control: Learn More

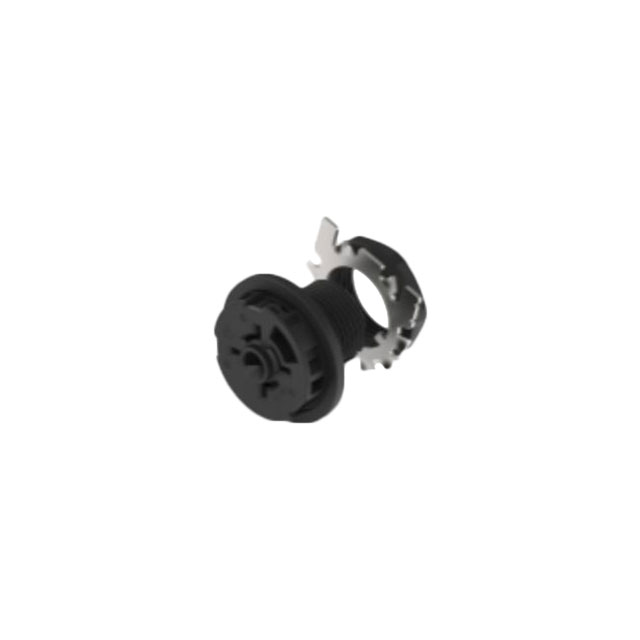

The TE Connectivity AMP Connectors LUMAWISE series 1-2363638-2 is a 4-position receptacle designed for robust solid-state lighting applications. This connector facilitates reliable board-to-cable or wire connections with its efficient poke-in termination, accommodating wire gauges from 18 to 20 AWG. Constructed from black Polybutylene Terephthalate (PBT) housing, it offers durability within an operating temperature range of -40°C to 90°C. The copper alloy contacts feature a tin finish for dependable conductivity. This component is integral to the LUMAWISE family, known for its application in general lighting and industrial illumination systems. The receptacle is supplied in a bag for convenient handling and integration into manufacturing processes.
Additional Information
Series: LUMAWISERoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Mounting Type | Panel Mount |
| Wire Gauge | 18-20 AWG |
| Pitch | - |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 90°C |
| Fastening Type | - |
| Termination | Poke-In |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Housing Color | Black |
| Number of Positions | 4 |
