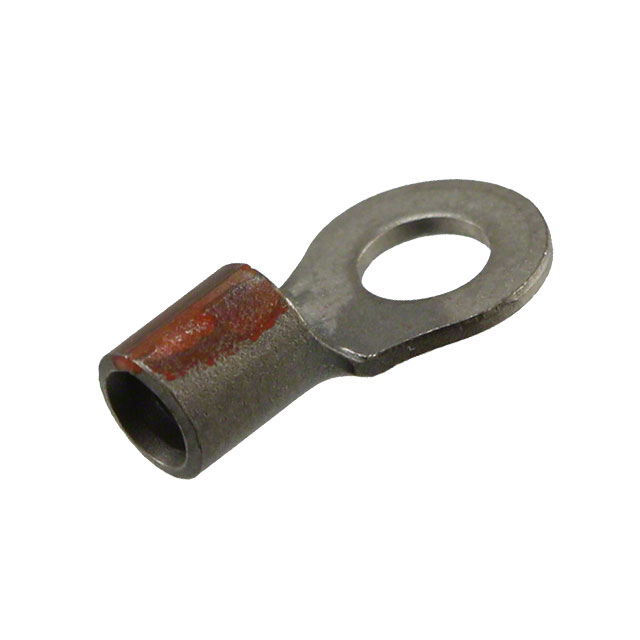

8-323680-2
CONN RING CIRC 10-12AWG #10Manufacturer: TE Connectivity AMP Connectors
Categories: Ring Connectors
Quality Control: Learn More
TE Connectivity AMP Connectors Solistrand, Strato-Therm 8-323680-2 is a non-insulated circular ring terminal designed for reliable termination. This component accommodates wire gauges from 10 to 12 AWG, featuring a crimp termination method. The terminal boasts a #10 stud size and is constructed with nickel contact material for enhanced conductivity and durability. Key design elements include a brazed seam for structural integrity and serrated termination for improved electrical contact. Its overall length is 0.739 inches (18.77mm) with an outer edge width of 0.375 inches (9.53mm) and a thickness of 0.039 inches (0.99mm). This high-temperature rated terminal is suitable for demanding applications in industries such as aerospace, automotive, and industrial equipment where robust and secure electrical connections are critical. The product is supplied in bulk packaging.
Additional Information
Series: Solistrand, Strato-ThermRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, High Temperature, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | - |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.039"" (0.99mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.739"" (18.77mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.375"" (9.53mm) |
| Contact Material | Nickel |
Request a Quote
Clients Also Buy

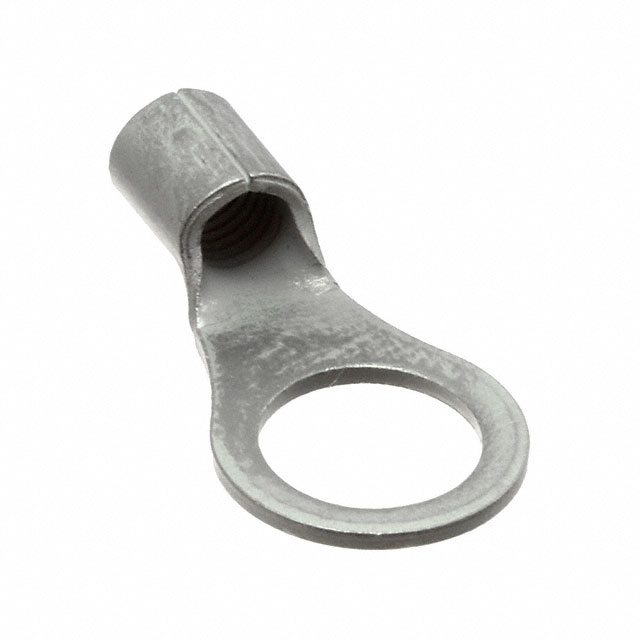

134962-1
CONN RING CIRC 8AWG M10 CRIMP

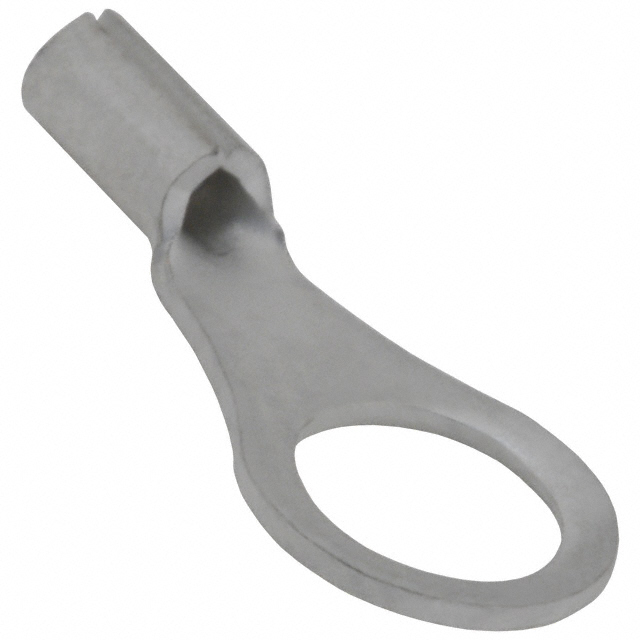

2-321884-2
CONN RING CIRC 16-22AWG #4 CRIMP

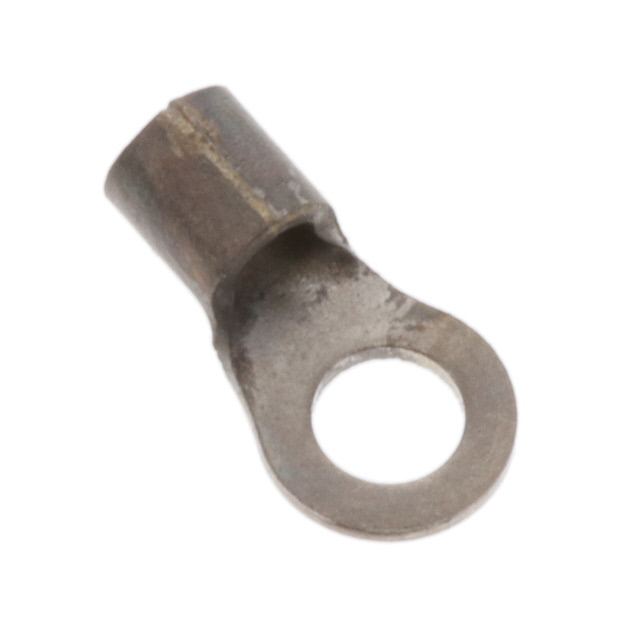

2-322329-1
