53426-1
CONN RING CIRC 10-12AWG #1/4Manufacturer: TE Connectivity AMP Connectors
Categories: Ring Connectors
Quality Control: Learn More

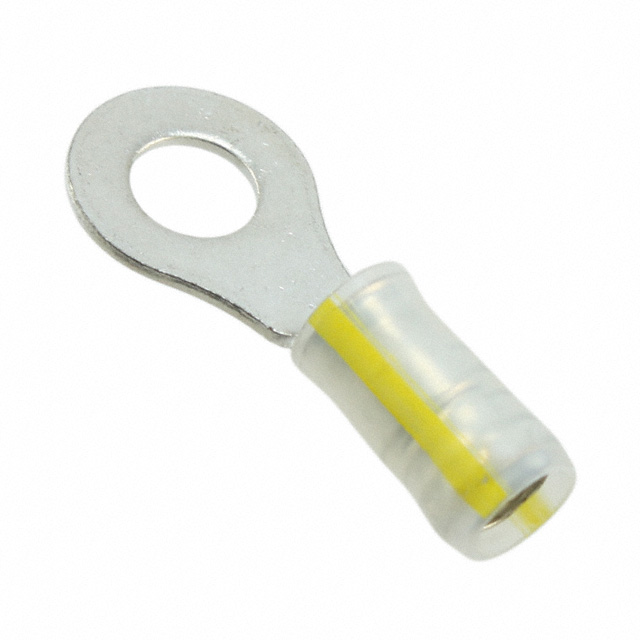

Ring Terminal Connector 1/4 Stud Circular 10-12 AWG Crimp
Additional Information
Series: PIDGRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Radiation Resistant |
| Packaging | Bulk |
| Contact Finish | Tin-Lead |
| Color | Natural, Yellow Stripe |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.039"" (0.99mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.322"" (33.58mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.531"" (13.49mm) |
| Contact Material | Copper |
