CONN RING CIRC 14-16AWG #10Manufacturer: TE Connectivity AMP Connectors
Categories: Ring Connectors
Quality Control: Learn More

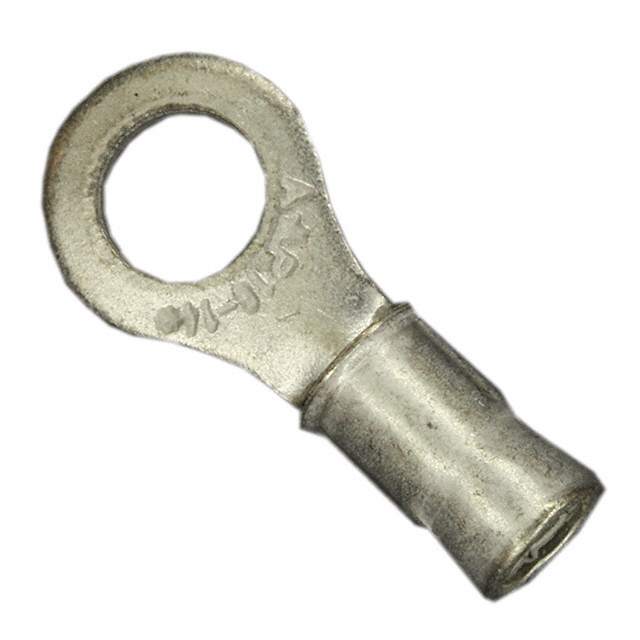

Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
Additional Information
Series: Diamond GripRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.031"" (0.79mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.790"" (20.07mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.343"" (8.71mm) |
| Contact Material | Copper |
Request a Quote
