2-328975-1
CONN RING CIRC 22AWG #1/2 CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Ring Connectors
Quality Control: Learn More

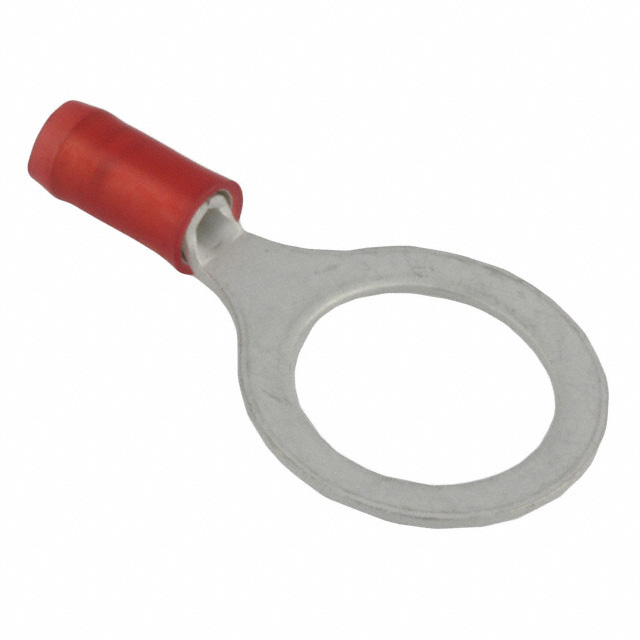

Ring Terminal Connector 1/2 Stud Circular 22 AWG Crimp
Additional Information
Series: PIDGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Insulation Restriction, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red, Green Stripe |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22 AWG |
| Insulation | Insulated |
| Thickness | 0.031"" (0.79mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.355"" (34.42mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.713"" (18.11mm) |
| Contact Material | Copper |
