2-324533-2
CONN RING CIRC 14-16AWG #10Manufacturer: TE Connectivity AMP Connectors
Categories: Ring Connectors
Quality Control: Learn More

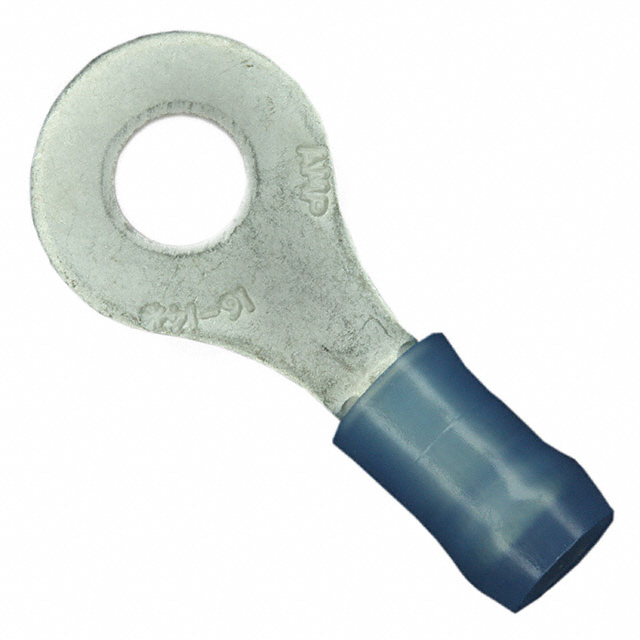

Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
Additional Information
Series: PIDGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Thickness | 0.031"" (0.79mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.078"" (27.38mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.469"" (11.91mm) |
| Contact Material | Copper |
