1958126-1
CONN RING CIRC 10-12AWG #5/16Manufacturer: TE Connectivity AMP Connectors
Categories: Ring Connectors
Quality Control: Learn More

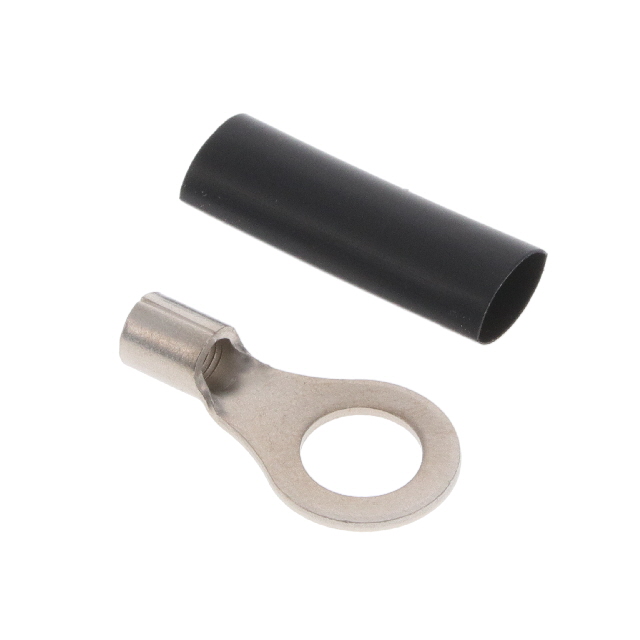

Ring Terminal Connector 5/16 Stud Circular 10-12 AWG Crimp
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination, With Heat Shrink Tubing |
| Packaging | Bulk |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.039"" (0.99mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.004"" (25.50mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.531"" (13.49mm) |
| Contact Material | Copper |
