170729-1
CONN RING CIRC 8AWG M8 CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Ring Connectors
Quality Control: Learn More

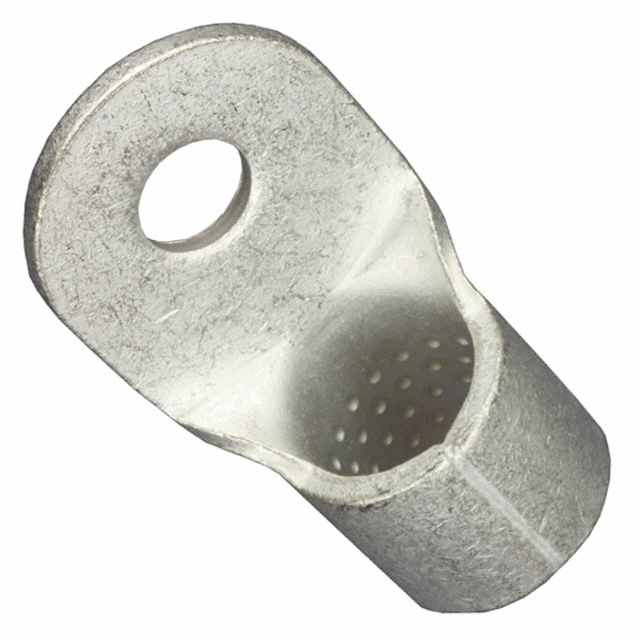

TE Connectivity AMP Connectors Solistrand ring terminal connector, part number 170729-1. This non-insulated, circular terminal is designed for M8 stud sizes and features an 8 AWG wire gauge capacity with a crimp termination. The overall length is 1.181 inches (30.00mm), with a width across outer edges of 0.591 inches (15.00mm) and a thickness of 0.047 inches (1.19mm). Constructed from copper with a tin contact finish, this component includes serrated termination for enhanced wire grip. Its free hanging (in-line) mounting type makes it suitable for applications in the automotive and industrial sectors where reliable electrical connections are critical. Supplied in bulk packaging.
Additional Information
Series: SolistrandRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.047"" (1.19mm) |
| Terminal Type | Circular |
| Stud/Tab Size | M8 Stud |
| Length - Overall | 1.181"" (30.00mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.591"" (15.00mm) |
| Contact Material | Copper |
Request a Quote
