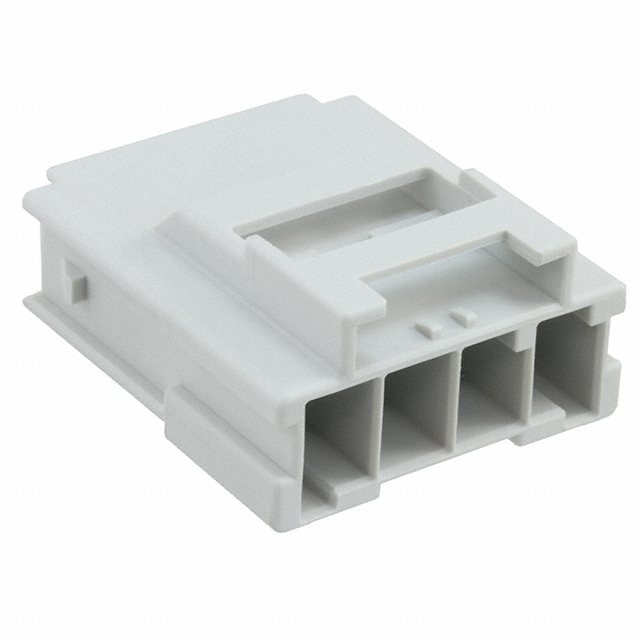

5-1971771-4
CONN RCPT HSG 4POS 6.00MMManufacturer: TE Connectivity AMP Connectors
Categories: Rectangular Connector Housings
Quality Control: Learn More
TE Connectivity AMP Connectors Power Triple Lock, High Temp series receptacle housing, part number 5-1971771-4. This 4-position, single-row housing features a 6.00mm pitch and a 0.236-inch mating interface. Constructed from high-temperature Polybutylene Terephthalate (PBT) insulation material, it offers a latch lock fastening type for secure mating. Designed for crimp termination of tab contacts, this gray, free-hanging (in-line) connector housing operates within a temperature range of -55°C to 105°C. It is suitable for demanding applications in the automotive, industrial, and appliance sectors. Supplied in bulk packaging.
Additional Information
Series: Power Triple Lock, High TempRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Pitch | 0.236"" (6.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Tab |
| Fastening Type | Latch Lock |
| Row Spacing | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

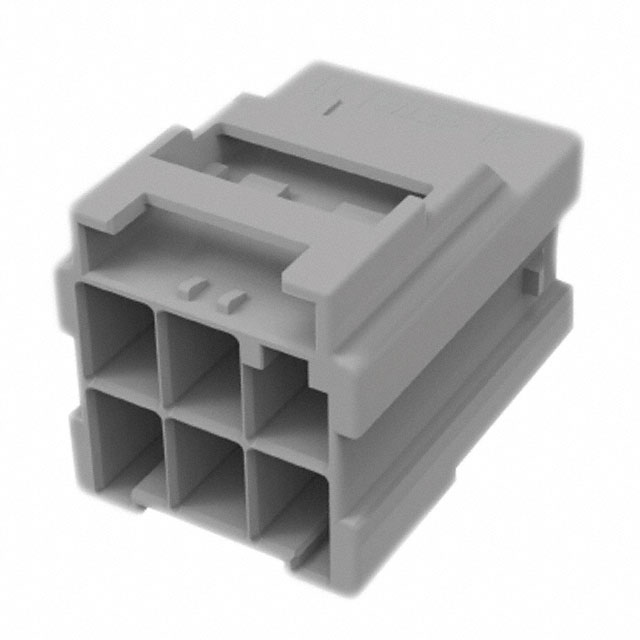

5-1971774-3
CONN RCPT HSG 6POS 6.00MM

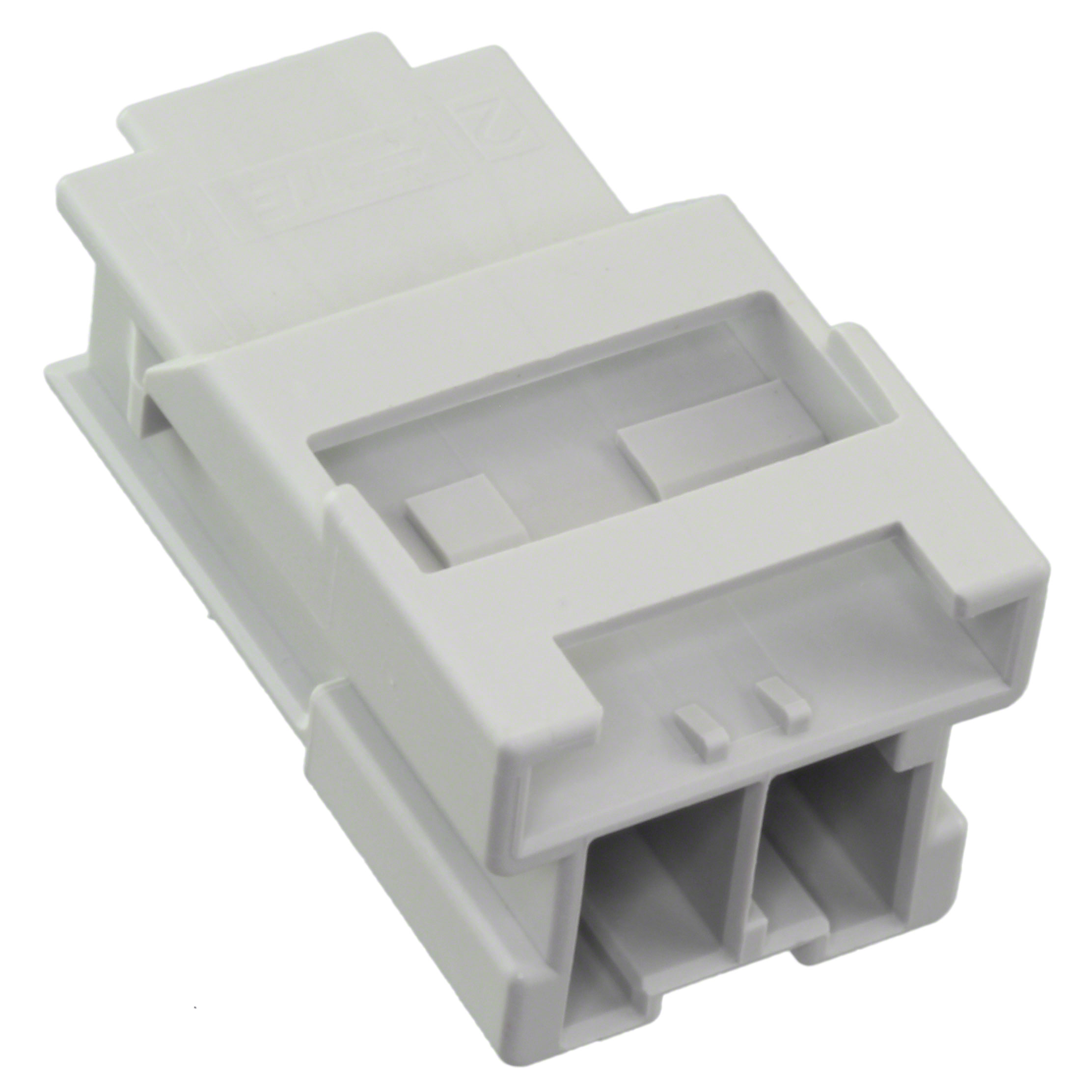

9-1971771-2
