2-1969598-2
CONN PLUG HSG 22POS 4.20MMManufacturer: TE Connectivity AMP Connectors
Categories: Rectangular Connector Housings
Quality Control: Learn More

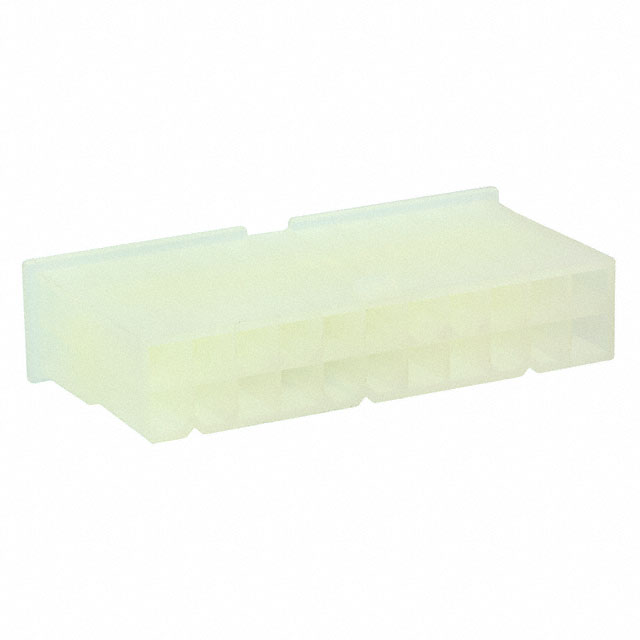

TE Connectivity AMP Connectors VAL-U-LOK series 2-1969598-2 is a 22-position plug housing for male pin contacts. This natural-colored housing features a 4.20mm pitch, a locking ramp for secure mating, and is designed for free-hanging (in-line) mounting. Manufactured from Polyamide (PA66), also known as Nylon 6/6, it offers robust insulation properties and an operating temperature range of -40°C to 105°C. This connector housing is suitable for applications requiring reliable interconnectivity in industries such as automotive, industrial automation, and consumer electronics. The component is supplied in bulk packaging.
Additional Information
Series: VAL-U-LOKRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Color | Natural |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 22 |
| Pitch | 0.165"" (4.20mm) |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Row Spacing | 0.165"" (4.20mm) |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Rows | 2 |
Request a Quote
