1969599-2
CONN PLUG HSG 2POS VAL-U-LOKManufacturer: TE Connectivity AMP Connectors
Categories: Rectangular Connector Housings
Quality Control: Learn More

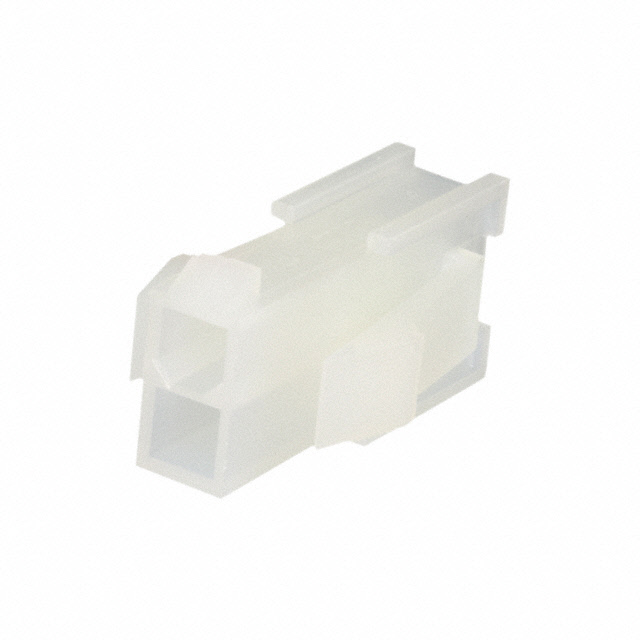

TE Connectivity AMP Connectors VAL-U-LOK series plug housing, part number 1969599-2, offers a 2-position rectangular connector solution. This natural colored housing is constructed from Polyamide (PA66), also known as Nylon 6/6, providing robust insulation properties. Designed for crimp termination with male pin contacts, it features a secure locking ramp for reliable mating. The housing supports panel mount and snap-in mounting types, with a row spacing of 0.165 inches (4.20mm). Operating within a temperature range of -40°C to 105°C, this component is suitable for applications in the automotive and industrial sectors. Packaging is provided in bulk.
Additional Information
Series: VAL-U-LOKRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Color | Natural |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 2 |
| Pitch | - |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Row Spacing | 0.165"" (4.20mm) |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Rows | 2 |
